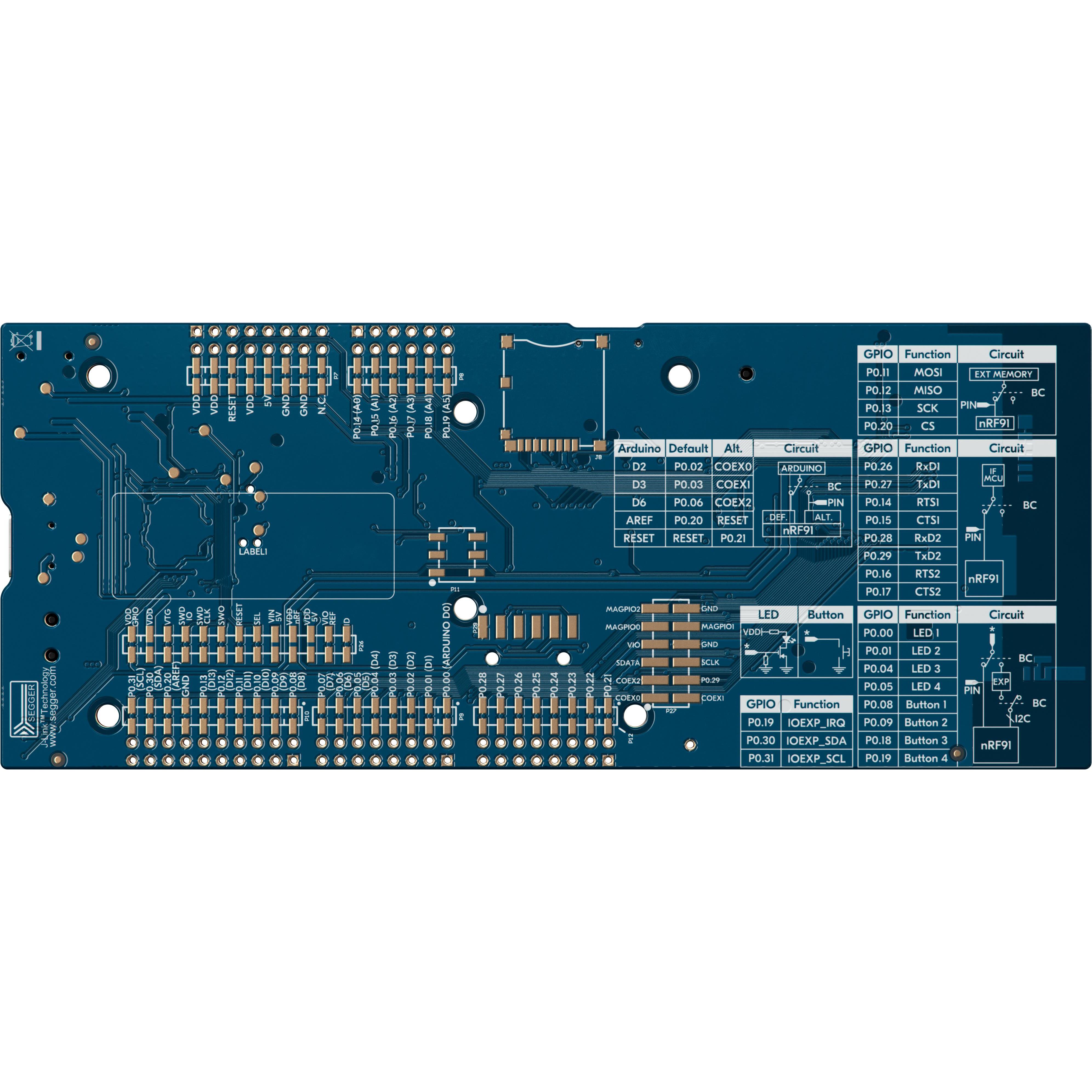

NRF9161-DK

Active

Nordic Semiconductor ASA

DEVELOPMENT KIT FOR THE NRF9161

Search across all available documentation for this part.

Active

Nordic Semiconductor ASA

DEVELOPMENT KIT FOR THE NRF9161

Technical Specifications

Parameters and characteristics for this part

Specification	NRF9161-DK

For Use With/Related Products	nRF9161
Supplied Contents	Board(s)
Type	Cellular, GNSS (GPS)

Part	Supplied Contents	Type	For Use With/Related Products	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Memory Size	GPIO	Serial Interfaces	Sensitivity	Voltage - Supply [Max]	Voltage - Supply [Min]	RF Family/Standard	Protocol	Frequency [Min]	Frequency [Max]	Power - Output
Nordic Semiconductor ASA NRF9161-DK	Board(s)	Cellular GNSS (GPS)	nRF9161
Nordic Semiconductor ASA NRF9161-LACA-R7		TxRx Only		Surface Mount	85 °C	-40 °C	1 MB 256 kB	32	I2C I2S PWM SPI UART	-108 dBm	5.5 V	3 V	Cellular	GPS	600 MHZ	2.2 GHz	23 dBmW
Nordic Semiconductor ASA NRF9161-LACA-R		TxRx Only		Surface Mount	85 °C	-40 °C	1 MB 256 kB	32	I2C I2S PWM SPI UART	-108 dBm	5.5 V	3 V	Cellular	GPS	600 MHz	2.2 GHz	23 dBmW

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 99.00

General part information

nRF9161 - Cellular, GNSS (GPS) Evaluation Board

Technical documentation and resources
