M22-2040446

Active

Harwin Inc.

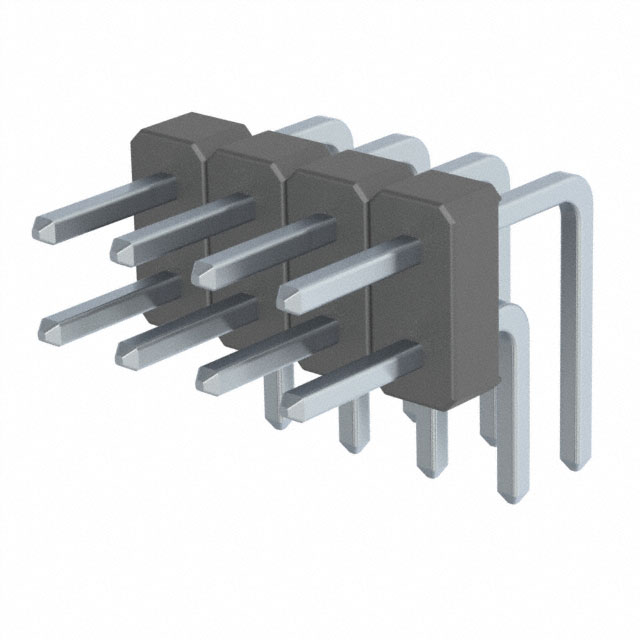

4+4 POS. MALE DIL HORIZONTAL THROUGHBOARD CONN. ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM20-003 Datasheet +1

M22-2040446

Active

Harwin Inc.

4+4 POS. MALE DIL HORIZONTAL THROUGHBOARD CONN. ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsM20-003 Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M22-2040446

Connector Type	Cuttable, Header
Contact Finish - Post	Tin
Contact Length - Mating	0.138 in
Contact Length - Mating	3.5 mm
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [custom]	0.157 in
Insulation Height [custom]	4 mm
Insulation Material	Nylon 6T, Polyamide (PA6T)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Unshrouded
Termination	Solder

M22-204 Series

Part	Shrouding	Mounting Type	Contact Length - Mating	Contact Length - Mating	Contact Shape	Insulation Color	Insulation Height [custom]	Insulation Height [custom]	Number of Positions Loaded	Fastening Type	Contact Finish - Mating	Connector Type	Row Spacing - Mating	Row Spacing - Mating	Number of Rows	Contact Length - Post	Contact Length - Post	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Material	Material Flammability Rating	Contact Type	Current Rating (Amps)	Termination	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Contact Finish - Post
Harwin Inc. M22-2041605	Unshrouded	Through Hole Right Angle	0.138 in	3.5 mm	Square	Black	0.157 in	4 mm	All	Push-Pull	Gold	Cuttable Header	0.079 in	2 mm	2	0.118 in	3 mm	0.079 in	2 mm	Nylon 6T Polyamide (PA6T)	UL94 V-0	Male Pin	1 A	Solder	Phosphor Bronze	-40 °C	105 ░C
Harwin Inc. M22-2040446	Unshrouded	Through Hole Right Angle	0.138 in	3.5 mm	Square	Black	0.157 in	4 mm	All	Push-Pull		Cuttable Header	0.079 in	2 mm	2	0.118 in	3 mm	0.079 in	2 mm	Nylon 6T Polyamide (PA6T)	UL94 V-0	Male Pin	1 A	Solder	Phosphor Bronze	-40 °C	105 ░C	8	Tin
Harwin Inc. M22-2040705	Unshrouded	Through Hole Right Angle	0.138 in	3.5 mm	Square	Black	0.157 in	4 mm	All	Push-Pull	Gold	Cuttable Header	0.079 in	2 mm	2	0.118 in	3 mm	0.079 in	2 mm	Nylon 6T Polyamide (PA6T)	UL94 V-0	Male Pin	1 A	Solder	Phosphor Bronze	-40 °C	105 ░C	14
Harwin Inc. M22-2040505	Unshrouded	Through Hole Right Angle	0.138 in	3.5 mm	Square	Black	0.157 in	4 mm	All	Push-Pull	Gold	Cuttable Header	0.079 in	2 mm	2	0.118 in	3 mm	0.079 in	2 mm	Nylon 6T Polyamide (PA6T)	UL94 V-0	Male Pin	1 A	Solder	Phosphor Bronze	-40 °C	105 ░C	10
Harwin Inc. M22-2040546	Unshrouded	Through Hole Right Angle	0.138 in	3.5 mm	Square	Black	0.157 in	4 mm	All	Push-Pull		Cuttable Header	0.079 in	2 mm	2	0.118 in	3 mm	0.079 in	2 mm	Nylon 6T Polyamide (PA6T)	UL94 V-0	Male Pin	1 A	Solder	Phosphor Bronze	-40 °C	105 ░C	10	Tin
Harwin Inc. M22-2042005	Unshrouded	Through Hole Right Angle	0.138 in	3.5 mm	Square	Black	0.157 in	4 mm	All	Push-Pull	Gold	Cuttable Header	0.079 in	2 mm	2	0.118 in	3 mm	0.079 in	2 mm	Nylon 6T Polyamide (PA6T)	UL94 V-0	Male Pin	1 A	Solder	Phosphor Bronze	-40 °C	105 ░C	40
Harwin Inc. M22-2040246	Unshrouded	Through Hole Right Angle	0.138 in	3.5 mm	Square	Black	0.157 in	4 mm	All	Push-Pull		Cuttable Header	0.079 in	2 mm	2	0.118 in	3 mm	0.079 in	2 mm	Nylon 6T Polyamide (PA6T)	UL94 V-0	Male Pin	1 A	Solder	Phosphor Bronze	-40 °C	105 ░C	4	Tin
Harwin Inc. M22-2040205	Unshrouded	Through Hole Right Angle	0.138 in	3.5 mm	Square	Black	0.157 in	4 mm	All	Push-Pull	Gold	Cuttable Header	0.079 in	2 mm	2	0.118 in	3 mm	0.079 in	2 mm	Nylon 6T Polyamide (PA6T)	UL94 V-0	Male Pin	1 A	Solder	Phosphor Bronze	-40 °C	105 ░C	4

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2000	$ 0.27
Newark	Each	1000	$ 0.28

M22-2040446

Deep-Dive with AI

M22-2040446

Deep-Dive with AI

Technical Specifications

M22-204 Series

Pricing

Description

M22-204 Series

Documents

M20-003

Datasheet

M22 Series Spec Sheet

M22-204 Series
