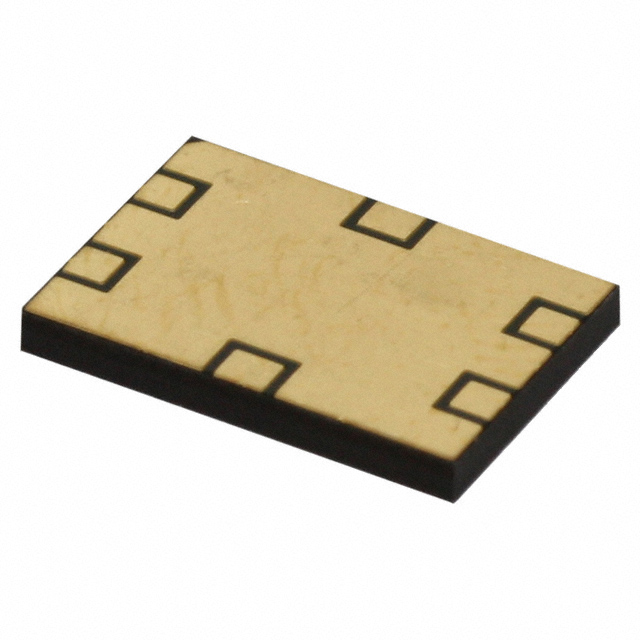

ALM-32120-BLKG
ObsoleteBroadcom Limited
IC RF AMP GSM 700MHZ-1GHZ 20MCOB
Deep-Dive with AI
Search across all available documentation for this part.
ALM-32120-BLKG
ObsoleteBroadcom Limited
IC RF AMP GSM 700MHZ-1GHZ 20MCOB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ALM-32120-BLKG |
|---|---|
| Current - Supply | 1.5 A |
| Frequency [Max] | 1 GHz |
| Frequency [Min] | 700 MHz |
| Gain | 14.3 dB |
| Mounting Type | Surface Mount |
| Noise Figure | 2.5 dB |
| P1dB | 34.4 dBm |
| Package / Case | 20-SMD Module, No Lead |
| RF Type | W-CDMA, WiMax, PCS, GSM |
| Supplier Device Package | 20-MCOB |
| Supplier Device Package [x] | 7 |
| Supplier Device Package [y] | 10 |
| Test Frequency | 900 MHz |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ALM-32120 Series
RF Amplifier IC GSM, PCS, W-CDMA, WiMAX 700MHz ~ 1GHz 20-MCOB (7x10)
Documents
Technical documentation and resources
No documents available
