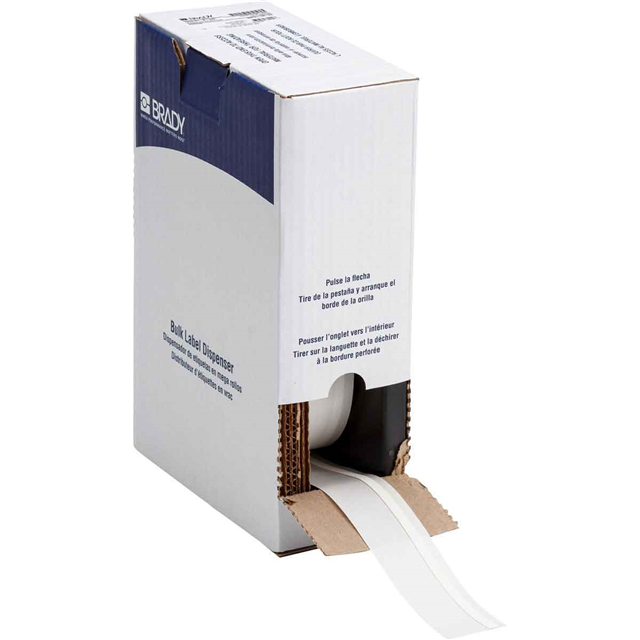

BM71C-125-342
ObsoleteBRADY
SLEEVE 22 AWG TO 16 AWG
Deep-Dive with AI
Search across all available documentation for this part.
BM71C-125-342
ObsoleteBRADY
SLEEVE 22 AWG TO 16 AWG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BM71C-125-342 |
|---|---|
| Color | White |
| Label Size [Max] [diameter] | 0.11 " |
| Label Size [Max] [diameter] | 2.8 mm |
| Label Size [Min] [diameter] | 1.2 mm |
| Label Size [Min] [diameter] | 0.05 " |
| Label Size [x] | 0.6 " |
| Label Size [x] | 15.2 mm |
| Label Size [y] | 3.2 mm |
| Label Size [y] | 0.13 " |
| Label Type | Heat Shrinkable |
| Material | Polyolefin (PO) |
| Operating Temperature [Max] | 135 °C |
| Operating Temperature [Min] | -55 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 352.78 | |
Description
General part information
BM71C-125 Series
White Heat Shrinkable Label 0.13" W x 0.60" L (3.2mm x 15.2mm); Cable O.D. 0.05" ~ 0.11" (1.2mm ~ 2.8mm)
Documents
Technical documentation and resources
No documents available
