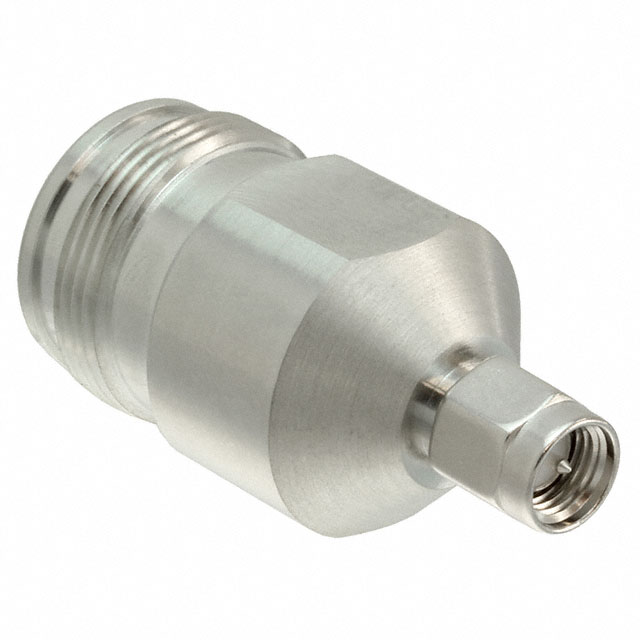

AD-4310JSMAP-1

Active

Amphenol RF

COAX ADAPT SMA TO 4.3/10

Deep-Dive with AI

Search across all available documentation for this part.

AD-4310JSMAP-1

Active

Amphenol RF

COAX ADAPT SMA TO 4.3/10

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AD-4310JSMAP-1

Adapter Series	SMA to 4.3/10
Adapter Type	Plug to Jack
Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Silver
Conversion Type	Between Series
Convert From (Adapter End)	SMA Plug, Male Pin
Convert To (Adapter End)	Female Socket, 4.3/10 Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	Low PIM
Frequency - Max [Max]	6000 MHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-55 °C
Style	Straight

AD-4310 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Conversion Type	Center Contact Material	Convert From (Adapter End)	Center Contact Plating	Adapter Series	Style	Body Material	Frequency - Max [Max]	Mounting Type	Adapter Type	Body Finish	Convert To (Adapter End)	Features	Dielectric Material	Impedance	Mating Cycles	Adapter Series [Max]	Adapter Series [Min]	Includes	Center Gender	Mounting Feature
Amphenol RF AD-4310PNJ-1	85 °C	-40 °C	Between Series	Beryllium Copper	4.3/10 Plug Male Pin	Silver	4.3/10 to N	Straight	Brass	6000 MHz	Free Hanging (In-Line)	Plug to Jack	White Bronze	Female Socket N Jack	Low PIM	Polytetrafluoroethylene (PTFE)	50 Ohms	500
Amphenol RF AD-4310P4310J-1	165 °C	-65 ░C	Same Series	Beryllium Copper	4.3/10 Jack Female Socket	Silver		Straight	Brass	6000 MHz	Free Hanging (In-Line)	Plug to Jack	White Bronze	4.3/10 Plug Male Pin	Low PIM	Polytetrafluoroethylene (PTFE)	50 Ohms	500	4.3/10	4.3/10
Amphenol RF AD-4310J4310J-2	85 °C	-40 °C	Same Series	Beryllium Copper	4.3/10 Jack Female Socket	Silver		Straight	Brass	6000 MHz		Jack to Jack	White Bronze	4.3/10 Jack Female Socket	Low PIM	Polytetrafluoroethylene (PTFE)	50 Ohms	500	4.3/10	4.3/10	1 Connector 1 Lockwasher 1 Nut	Female to Female	Bulkhead
Amphenol RF AD-4310JNJ-1	90 °C	-55 °C	Between Series	Beryllium Copper	Female Socket N Jack	Silver	4.3/10 N	Straight	Brass	3 GHz	Free Hanging (In-Line)	Jack to Jack	White Bronze	4.3/10 Jack Female Socket	Low PIM	Polytetrafluoroethylene (PTFE)	50 Ohms	500				Female to Female
Amphenol RF AD-4310JSMAP-1	90 °C	-55 °C	Between Series	Beryllium Copper	SMA Plug Male Pin	Silver	SMA to 4.3/10	Straight	Brass	6000 MHz	Free Hanging (In-Line)	Plug to Jack	White Bronze	4.3/10 Jack Female Socket	Low PIM	Polytetrafluoroethylene (PTFE)	50 Ohms	500
Amphenol RF AD-4310PSMAJ-1	165 °C	-65 ░C	Between Series	Beryllium Copper	Female Socket SMA Jack	Silver	SMA to 4.3/10	Straight	Brass	6000 MHz	Free Hanging (In-Line)	Plug to Jack	White Bronze	4.3/10 Plug Male Pin	Low PIM	Polytetrafluoroethylene (PTFE)	50 Ohms	500

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 50.87
		10	$ 43.24
		25	$ 40.53
		50	$ 38.60
		100	$ 36.76
		250	$ 34.54

Description

General part information

AD-4310 Series

Adapter Coaxial Connector SMA Plug, Male Pin To 4.3/10 Jack, Female Socket 50 Ohms

Documents

Technical documentation and resources

No documents available
