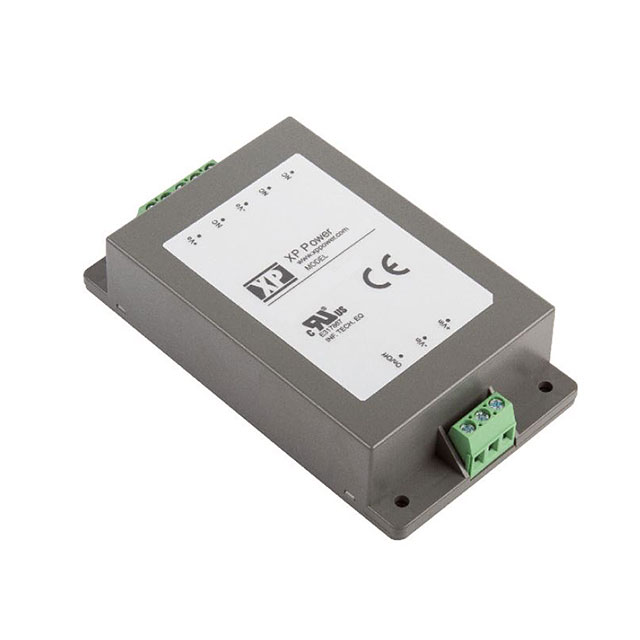

DTE4024S24

Active

XP POWER

DC-DC CONVERTER, 24V, 1.67A

Search across all available documentation for this part.

Active

XP POWER

DC-DC CONVERTER, 24V, 1.67A

Technical Specifications

Parameters and characteristics for this part

Part	DC Voltage - Input (Max) [Max]	Voltage - Output 1	DC Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Standard Number	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Efficiency	Power (Watts)	Applications	Number of Outputs	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Input Type	Voltage - Input (Min) [Min]	Type	Mounting Type	Voltage - Input (Max) [Max]
XP POWER DTE4024S48-D	36 V	48 V	9 V	835 mA	62368-1	85 °C	-40 °C	CB CE cURus	89 %	40 W	ITE (Commercial)	1	63.8 mm	112 mm	4.41 "	25.6 mm	1.01 in	2.51 "	DC
XP POWER DTE4024S48		48 V		835 mA	62368-1	85 °C	-40 °C	CB CE cURus	89 %	40 W	ITE (Commercial)	1	63.8 mm	112 mm	4.41 "	25.6 mm	1.01 in	2.51 "		9 V	Enclosed	Chassis Mount	36 V
XP POWER DTE4024S12		12 V		3.33 A	62368-1	85 °C	-40 °C	CB CE cURus	90 %	40 W	ITE (Commercial)	1	63.8 mm	112 mm	4.41 "	25.6 mm	1.01 in	2.51 "		9 V	Enclosed	Chassis Mount	36 V
XP POWER DTE4048S5V1-D	75 V	5.1 V	18 V	8 A	62368-1	85 °C	-40 °C	CB CE cURus	89 %	40 W	ITE (Commercial)	1	63.8 mm	112 mm	4.41 "	25.6 mm	1.01 in	2.51 "	DC
XP POWER DTE4048S24-D	75 V	24 V	18 V	1.67 A	62368-1	85 °C	-40 °C	CB CE cURus	92 %	40 W	ITE (Commercial)	1	63.8 mm	112 mm	4.41 "	25.6 mm	1.01 in	2.51 "	DC
XP POWER DTE4048S48		48 V		835 mA	62368-1	85 °C	-40 °C	CB CE cURus	90 %	40 W	ITE (Commercial)	1	63.8 mm	112 mm	4.41 "	25.6 mm	1.01 in	2.51 "		18 V	Enclosed	Chassis Mount	75 V
XP POWER DTE4024S24		24 V		1.67 A	62368-1	85 °C	-40 °C	CB CE cURus	90 %	40 W	ITE (Commercial)	1	63.8 mm	112 mm	4.41 "	25.6 mm	1.01 in	2.51 "		9 V	Enclosed	Chassis Mount	36 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed DC DC Converter 1 Output 24V 1.67A 36V Input
