OD172SAP-24HHB01A

Active

Orion Fans

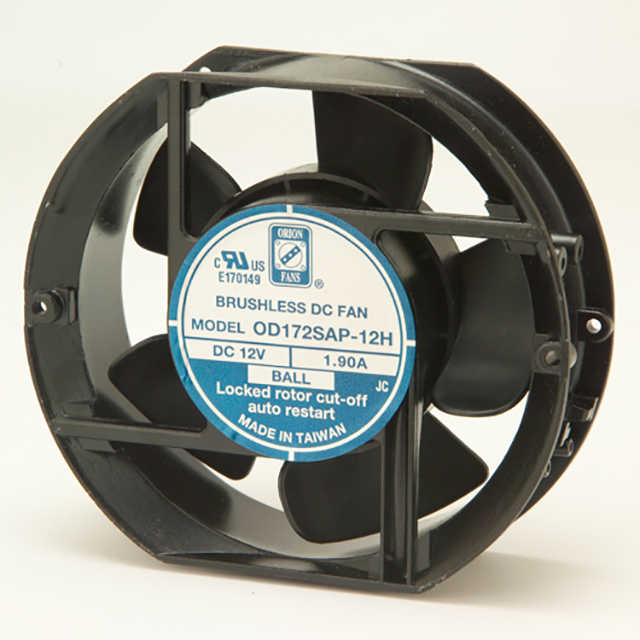

DC AXIAL FAN, 24 V, RECTANGULAR WITH ROUNDED ENDS, 172 MM, 51 MM, BALL BEARING, 300 CFM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Miscellaneous EN

OD172SAP-24HHB01A

Active

Orion Fans

DC AXIAL FAN, 24 V, RECTANGULAR WITH ROUNDED ENDS, 172 MM, 51 MM, BALL BEARING, 300 CFM

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Miscellaneous EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OD172SAP-24HHB01A

Air Flow	8.4 mł/min
Air Flow	300 CFM
Approval Agency	cURus, TUV
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Auto Restart, Speed Sensor (Tach)
Lifetime @ Temp.	40000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Material - Frame	Aluminum
Noise	57 dB
Operating Temperature [Max]	75 ░C
Operating Temperature [Max]	75 °C
Operating Temperature [Min]	-20 C
Operating Temperature [Min]	-20 °C
RPM	3900 RPM
Size / Dimension	Rectangular/Rounded
Size / Dimension [x]	172 mm
Size / Dimension [z]	150 mm
Static Pressure	244 Pa
Static Pressure	0.98 in H2O
Termination	3 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	28 VDC
Voltage Range [Min]	15 VDC
Width [y]	51 mm

OD172SAP Series

Part	Lifetime @ Temp.	Air Flow	Air Flow	Current Rating (Amps)	Approval Agency	Fan Type	Size / Dimension	Size / Dimension [z]	Size / Dimension [x]	RPM	Static Pressure	Static Pressure	Noise	Features	Voltage Range [Max]	Voltage Range [Min]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Termination	Bearing Type	Material - Frame	Width [y]	Voltage - Rated	Material - Blade	Voltage - Rated [custom]	Operating Temperature [Max]	Weight	Weight	Power (Watts)	Size / Dimension [y]	Size / Dimension [custom]	Width [x]	Ingress Protection	Weight
Orion Fans OD172SAP-24HTB	40000 Hrs	235 CFM	6.58 m³/min	970 mA	cURus TUV	Tubeaxial	Rectangular/Rounded	150 mm	172 mm	3300 RPM	196.8 Pa	0.79 in H2O	52 dB	Auto Restart	28 VDC	15 VDC	-20 C	-20 °C	75 ░C	75 °C	2 Terminals	Ball	Aluminum	2 "	24 VDC	Polybutylene Terephthalate (PBT) Fiberglass Reinforced
Orion Fans OD172SAPL-48HHBXC						Tubeaxial	Rectangular/Rounded	150 mm	172 mm					Auto Restart							2 Wire Leads	Ball	Aluminum	38.5 mm		Polybutylene Terephthalate (PBT)	48 VDC
Orion Fans OD172SAP-24HHB01A	40000 Hrs	300 CFM	8.4 mł/min		cURus TUV	Tubeaxial	Rectangular/Rounded	150 mm	172 mm	3900 RPM	244 Pa	0.98 in H2O	57 dB	Auto Restart Speed Sensor (Tach)	28 VDC	15 VDC	-20 C	-20 °C	75 ░C	75 °C	3 Wire Leads	Ball	Aluminum	51 mm	24 VDC	Polybutylene Terephthalate (PBT)
Orion Fans OD172SAP-12HBXC	65000 Hrs	277 CFM	7.76 m³/min	3.5 A	cURus TUV	Tubeaxial	Rectangular/Rounded	150 mm	172 mm	3900 RPM	284 Pa	1.14 in H2O	62 dB(A)	Auto Restart	14 V	9 V	-10 °C	-10 °C	70 °C		2 Wire Leads	Ball	Aluminum	2 "	12 VDC	Polybutylene Terephthalate (PBT) Fiberglass Reinforced		70 °C
Orion Fans OD172SAP-24HBXCIP68	35 °C 90000 Hrs	323 CFM	9.04 m³/min		CE cURus TUV UR	Tubeaxial			172 mm	4400 RPM	264 Pa	1.06 in H2O	63.5 dB(A)	Auto Restart			-20 C	-20 °C	65 °C		2 Wire Leads	Ball	Aluminum		24 VDC	Polybutylene Terephthalate (PBT)		65 °C	0.6 kg	1.3 lbs	50.4 W	152 mm	Rectangular/Rounded	51.6 mm	IP68 - Dust Tight Waterproof
Orion Fans OD172SAP-12HHB	40000 Hrs	290 CFM	8.12 m³/min	2.9 A	cURus TUV	Tubeaxial	Rectangular/Rounded	150 mm	172 mm	3800 RPM	231.7 Pa	0.93 in H2O	56 dB	Auto Restart	14 V	8 VDC	-20 C	-20 °C	75 ░C	75 °C	2 Wire Leads	Ball	Aluminum	51 mm	12 VDC	Polybutylene Terephthalate (PBT) Fiberglass Reinforced
Orion Fans OD172SAP-48HBXC	65000 Hrs	307 CFM	8.6 mł/min	1.2 A	cURus TUV	Tubeaxial	Rectangular/Rounded	150 mm	172 mm	4600 RPM	398.6 Pa	1.6 in H2O	67 dB	Auto Restart	55 VDC	24 VDC	-10 °C	-10 °C	70 °C		2 Wire Leads	Ball	Aluminum	2 "		Polybutylene Terephthalate (PBT) Fiberglass Reinforced	48 VDC	70 °C
Orion Fans OD172SAP-48HBIP68	35 °C 90000 Hrs	235 CFM	6.58 m³/min	480 mA	cURus TUV	Tubeaxial	Rectangular/Rounded	150 mm	172 mm	3300 RPM	196.8 Pa	0.79 in H2O	52 dB	Auto Restart			-15 °C	-15 °C	65 °C		2 Wire Leads	Ball		51 mm		Polybutylene Terephthalate (PBT)	48 VDC	65 °C	1.8 lbs						IP68 - Dust Tight Waterproof	816.5 g
Orion Fans OD172SAP-48HHB10A	40000 Hrs	300 CFM	8.4 mł/min	0.69 A	cURus TUV	Tubeaxial	Rectangular/Rounded	150 mm	172 mm	3900 RPM	244 Pa	0.98 in H2O	57 dB	Auto Restart PWM Control Speed Sensor (Tach)	53 VDC	22 VDC	-20 C	-20 °C	75 ░C	75 °C	4 Wire Leads	Ball	Aluminum	51 mm		Polybutylene Terephthalate (PBT) Fiberglass Reinforced	48 VDC
Orion Fans OD172SAP-24HB01	40000 Hrs	235 CFM	6.58 m³/min	970 mA	cURus TUV	Tubeaxial	Rectangular/Rounded	150 mm	172 mm	3300 RPM	196.8 Pa	0.79 in H2O	52 dB	Auto Restart Speed Sensor (Tach)	28 VDC	15 VDC	-20 C	-20 °C	75 ░C	75 °C	3 Wire Leads	Ball	Aluminum	2 "	24 VDC	Polybutylene Terephthalate (PBT) Fiberglass Reinforced

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 75.75

Description

General part information

OD172SAP Series

Fan Tubeaxial 24VDC Rectangular/Rounded - 172mm L x 150mm H Ball 300.0 CFM (8.40m³/min) 3 Wire Leads

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet

Miscellaneous EN

Datasheet
