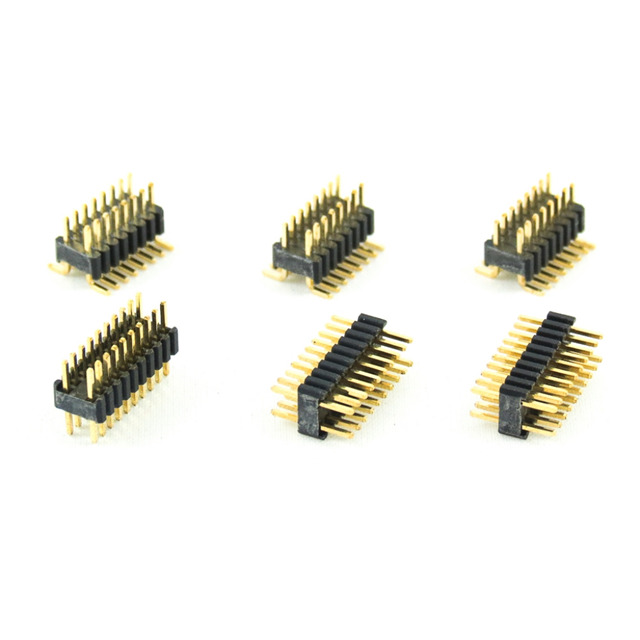

2212-2X05G00S/030/058B

Active

Oupiin

PIN HEADER, DOUBLE ROW, 10 PIN,

Search across all available documentation for this part.

Active

Oupiin

PIN HEADER, DOUBLE ROW, 10 PIN,

Technical Specifications

Parameters and characteristics for this part

Specification	2212-2X05G00S/030/058B

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Mating	0.228 in
Contact Length - Mating	5.8 mm
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.098 in
Insulation Height [z]	2.5 mm
Insulation Material	Nylon 6T, Polyamide (PA6T)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Overall Contact Length	11.3 mm
Overall Contact Length	0.445 "
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder

Part	Contact Length - Mating	Contact Length - Mating	Number of Positions	Contact Finish Thickness - Mating	Termination	Insulation Material	Pitch - Mating	Pitch - Mating	Insulation Height [z]	Insulation Height [z]	Contact Finish - Mating	Contact Material	Material Flammability Rating	Contact Finish - Post	Shrouding	Number of Positions Loaded	Number of Rows	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Contact Length - Post	Contact Length - Post	Fastening Type	Insulation Color	Contact Shape	Contact Finish Thickness - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Connector Type	Overall Contact Length	Overall Contact Length
Oupiin 2212-2X05G00S/030/058B	0.228 in	5.8 mm	10	Flash	Solder	Nylon 6T Polyamide (PA6T)	0.05 in	1.27 mm	0.098 in	2.5 mm	Gold	Brass	UL94 V-0	Gold	Unshrouded	All	2	Through Hole	-40 °C	105 ░C	Male Pin	0.118 in	3 mm	Push-Pull	Black	Square	Flash	2.54 mm	0.1 in	Header	11.3 mm	0.445 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.54

General part information

Connector Header Through Hole 10 position 0.050" (1.27mm)

Technical documentation and resources

No documents available
