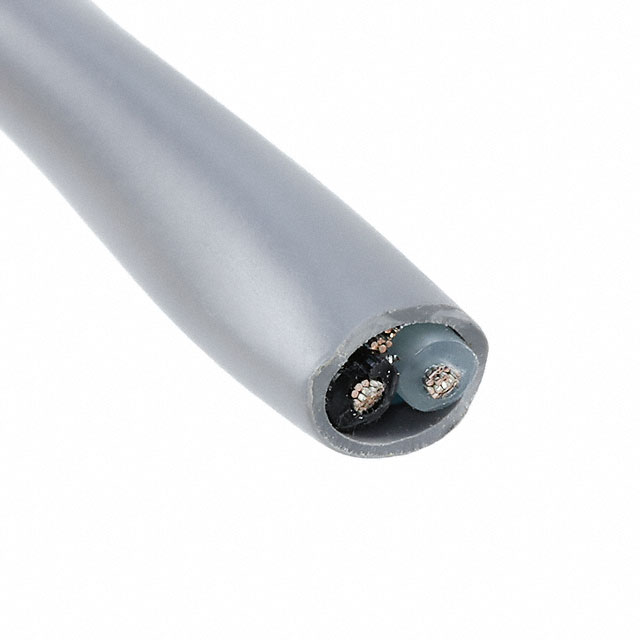

2471 SL005

Active

ALPHA WIRE

MULTIPAIR CABLE, COMMUNICATION, SHIELDED, 1 PAIR, 16 AWG, 100 FT, 30.5 M

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsProduct Change Notice EN Comm, Control, Industrial Cable Catalog

2471 SL005

Active

ALPHA WIRE

MULTIPAIR CABLE, COMMUNICATION, SHIELDED, 1 PAIR, 16 AWG, 100 FT, 30.5 M

Deep-Dive with AI

DocumentsProduct Change Notice EN Comm, Control, Industrial Cable Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2471 SL005

Cable Type	Multi-Conductor
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19
Conductor Strand [custom]	0.0117 in
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.314 in
Jacket (Insulation) Diameter [diameter]	7.98 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Slate
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	2
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Control, Communication
Voltage	600 V
Wire Gauge	16 AWG

2471 Series

Part	Length [x]	Length [x]	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Type	Shield Coverage	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge	Conductor Insulation	Conductor Material	Shield Material	Features	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Material	Number of Conductors	Voltage	Usage	Cable Type	Length	Length
ALPHA WIRE 2471 SL002	500 '	152.4 m	Slate	0.314 in	7.98 mm	Foil	100 %	-20 C	60 °C	16 AWG	Polyethylene (PE)	Copper Tinned	Aluminum	Drain Wire	19	0.0117 in	Poly-Vinyl Chloride (PVC)	2	600 V	Communication Control	Multi-Conductor
ALPHA WIRE 2471 SL005	100 ft	30.5 m	Slate	0.314 in	7.98 mm	Foil	100 %	-20 C	60 °C	16 AWG	Polyethylene (PE)	Copper Tinned	Aluminum	Drain Wire	19	0.0117 in	Poly-Vinyl Chloride (PVC)	2	600 V	Communication Control	Multi-Conductor
ALPHA WIRE 2471 SL001			Slate	0.314 in	7.98 mm	Foil	100 %	-20 C	60 °C	16 AWG	Polyethylene (PE)	Copper Tinned	Aluminum	Drain Wire	19	0.0117 in	Poly-Vinyl Chloride (PVC)	2	600 V	Communication Control	Multi-Conductor	1000 ft	304.8 m

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 213.43
		3	$ 197.73
		5	$ 193.40
Newark	Spool of 100	1	$ 317.01
		10	$ 313.81

Description

General part information

2471 Series

The 2471 SL005 is a 1-pair Shielded Cable with 16AWG tinned copper conductor and a slate PVC jacket. The multipair cable comes with aluminum/Mylar tape shield and a polypropylene insulation. This cable meets special needs, such as low capacitance for extended transmission of digital signals, such as the extra flexibility of rubber insulation and jacket for electrically noisy environments.
