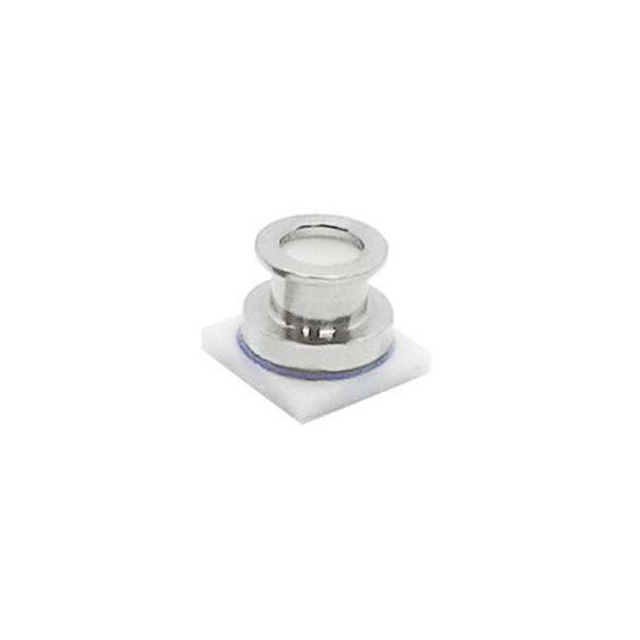

MS5839-02BA36
ActiveTE Connectivity Measurement Specialties
SENSOR 17.4PSIA 24BIT
Deep-Dive with AI
Search across all available documentation for this part.
MS5839-02BA36
ActiveTE Connectivity Measurement Specialties
SENSOR 17.4PSIA 24BIT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MS5839-02BA36 |
|---|---|
| Accuracy | 0.007 PSI |
| Accuracy | 0.05 kPa |
| Features | Temperature Compensated |
| Maximum Pressure | 1000 kPa |
| Maximum Pressure | 145.04 PSI |
| Mounting Type | Surface Mount |
| Operating Pressure [Max] | 17.4 PSI |
| Operating Pressure [Max] | 120 kPa |
| Operating Pressure [Min] | 30 kPa |
| Operating Pressure [Min] | 4.35 PSI |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Output | 24 b |
| Output Type | I2C |
| Package / Case | 4-SMD, No Lead |
| Port Style | No Port |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 1.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 12.70 | |
| 5 | $ 10.70 | |||
| 10 | $ 9.95 | |||
| 25 | $ 9.03 | |||
| 50 | $ 8.39 | |||
| 100 | $ 7.80 | |||
| 500 | $ 6.58 | |||
| 1000 | $ 6.11 | |||
| Digi-Reel® | 1 | $ 12.70 | ||
| 5 | $ 10.70 | |||
| 10 | $ 9.95 | |||
| 25 | $ 9.03 | |||
| 50 | $ 8.39 | |||
| 100 | $ 7.80 | |||
| 500 | $ 6.58 | |||
| 1000 | $ 6.11 | |||
| Tape & Reel (TR) | 2500 | $ 6.64 | ||
Description
General part information
MS5839 Series
Pressure Sensor 4.35PSI ~ 17.4PSI (30kPa ~ 120kPa) Absolute 24 b 4-SMD, No Lead
