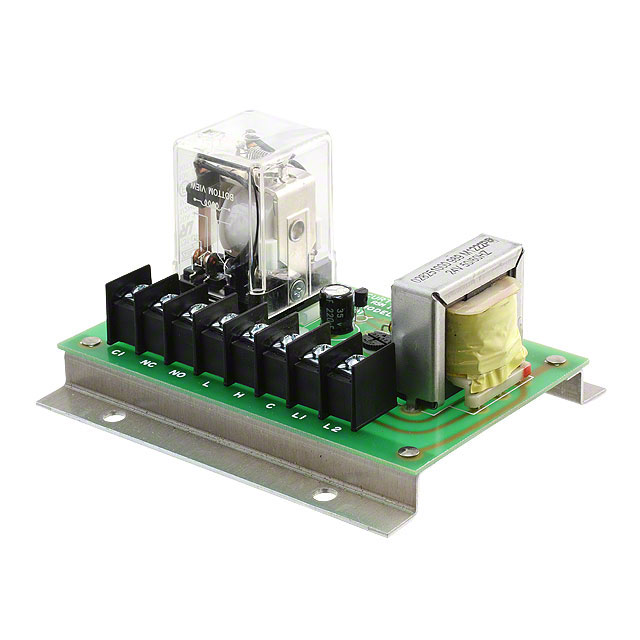

LCS-30

Obsolete

Curtis Industries

CONTROL LIQUID LEV 24VAC CHASSIS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LCS-30

Obsolete

Curtis Industries

CONTROL LIQUID LEV 24VAC CHASSIS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LCS-30

Contact Form	SPDT (1 Form C)
Contact Rating @ Voltage [x]	10 A, 120 VAC
Features	Adjustable Sensitivity
Mounting Type	Chassis Mount
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	0 °C
Sensitivity [Max]	100 kOhm
Sensitivity [Min]	0
Termination Style	Screw Terminal
Type	High/Low Level
Voltage - Supply	24 VAC

LCS Series

Part	Operating Temperature [Max]	Mounting Type	Sensitivity [Max]	Features	Termination Style	Contact Form	Contact Rating @ Voltage [x]	Type	Voltage - Supply
Curtis Industries LCS-20-N4	60 °C	Chassis Mount	100 kOhm	Adjustable Sensitivity NEMA 4 Rated Enclosure Included	Screw Terminal	SPDT (1 Form C)	10 A 120 VAC	High/Low Level	240 VAC
Curtis Industries LCS-20	60 °C	Chassis Mount	100 kOhm	Adjustable Sensitivity	Screw Terminal	SPDT (1 Form C)	10 A 120 VAC	High/Low Level	240 VAC
Curtis Industries LCS-10-C-N4	60 °C	Chassis Mount	100 kOhm	Adjustable Sensitivity Auxiliary Contactor NEMA 4 Rated Enclosure Included	Screw Terminal	SPDT (1 Form C)	10 A 120 VAC	High/Low Level	120 VAC
Curtis Industries LCS-10-C	60 °C	Chassis Mount	100 kOhm	Adjustable Sensitivity Auxiliary Contactor	Screw Terminal	SPDT (1 Form C)	10 A 120 VAC	High/Low Level	120 VAC
Curtis Industries LCS-20-C	60 °C	Chassis Mount	100 kOhm	Adjustable Sensitivity Auxiliary Contactor	Screw Terminal	SPDT (1 Form C)	10 A 120 VAC	High/Low Level	240 VAC
Curtis Industries LCS-10-N4	60 °C	Chassis Mount	100 kOhm	Adjustable Sensitivity NEMA 4 Rated Enclosure Included	Screw Terminal	SPDT (1 Form C)	10 A 120 VAC	High/Low Level	120 VAC
Curtis Industries LCS-30	60 °C	Chassis Mount	100 kOhm	Adjustable Sensitivity	Screw Terminal	SPDT (1 Form C)	10 A 120 VAC	High/Low Level	24 VAC
Curtis Industries LCS-30-C	60 °C	Chassis Mount	100 kOhm	Adjustable Sensitivity Auxiliary Contactor	Screw Terminal	SPDT (1 Form C)	10 A 120 VAC	High/Low Level	24 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

LCS Series

Liquid Level Controller High/Low Level SPDT (1 Form C) 24VAC Chassis Mount

Documents

Technical documentation and resources
