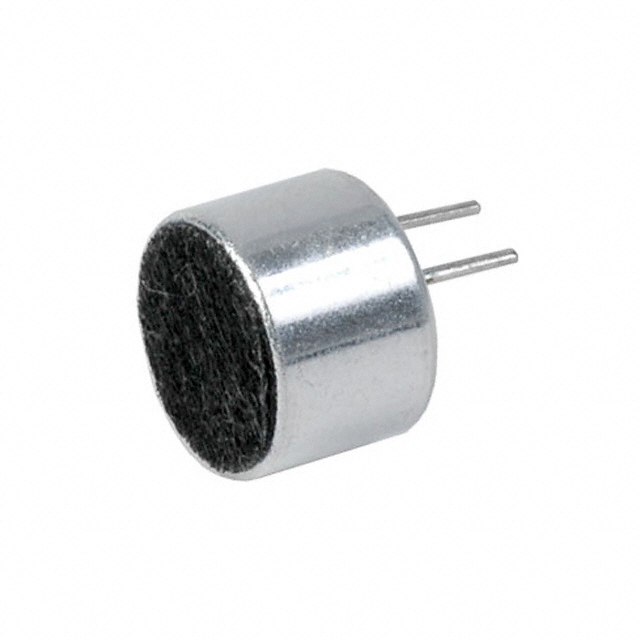

CMB-6544PF
ActiveCUI Devices
MIC COND ANLG OMNI -44DB 0.370"D
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CMB-6544PF
ActiveCUI Devices
MIC COND ANLG OMNI -44DB 0.370"D
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CMB-6544PF |
|---|---|
| Current - Supply | 500 µA |
| Direction | Omnidirectional |
| Frequency Range [Max] | 20 kHz |
| Frequency Range [Min] | 20 Hz |
| Height (Max) [Max] | 0.264 in |
| Height (Max) [Max] | 6.7 mm |
| Impedance | 1 kOhms |
| Output Type | Analog |
| Port Location | Top |
| S/N Ratio | 60 dB |
| Sensitivity | -44 dB |
| Shape | Circular |
| Size / Dimension | 9.4 mm |
| Size / Dimension [diameter] | 0.37 in |
| Termination | PC Pins |
| Type | Electret Condenser |
| Voltage Range [Max] | 10 V |
| Voltage Range [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 0.85 | |
| 10 | $ 0.72 | |||
| 25 | $ 0.68 | |||
| 50 | $ 0.64 | |||
| 100 | $ 0.61 | |||
| 300 | $ 0.57 | |||
| 500 | $ 0.53 | |||
| 1000 | $ 0.50 | |||
| 5000 | $ 0.43 | |||
Description
General part information
CMB-6544 Series
20 Hz ~ 20 kHz Analog Microphone Electret Condenser 4.5 V ~ 10 V Omnidirectional (-44dB ±3dB @ 94dB SPL) PC Pins
