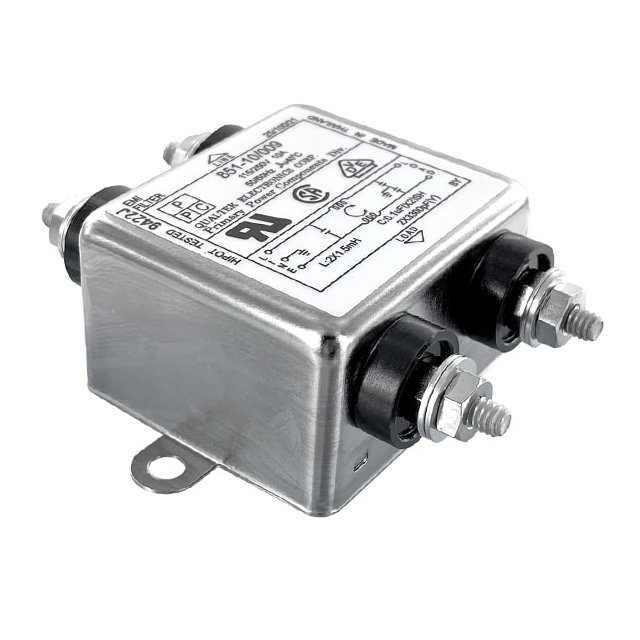

851-10/009
ActiveQualtek
LINE FILTER 115V/250VAC 10A CHAS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
851-10/009
ActiveQualtek
LINE FILTER 115V/250VAC 10A CHAS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 851-10/009 |
|---|---|
| Applications | General Purpose |
| Approval Agency | VDE, CSA, UR |
| Configuration | Single Stage |
| Current | 10 A |
| Filter Type | Single Phase |
| Frequency - Operating [Max] | 60 Hz |
| Frequency - Operating [Min] | 50 Hz |
| Inductance | 1.5 mH |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Termination Style | Threaded Post (8-32) |
| Voltage - Rated AC | 115 V, 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 17.33 | |
| 21 | $ 16.79 | |||
| 42 | $ 15.70 | |||
| 84 | $ 14.08 | |||
| 231 | $ 13.54 | |||
| 441 | $ 13.40 | |||
Description
General part information
851-10 Series
Single Phase EMC/EMI Line Filter 10 A 115V, 250V 50/60Hz Single Stage Threaded Post (8-32)
