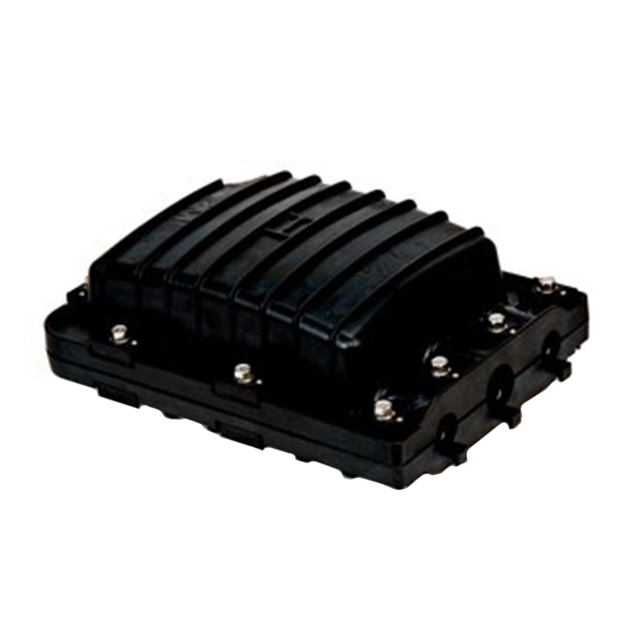

2178-XLB-B-02-01G-30N-0N

Active

3M (TC)

WIRE SPLICE ENCLOSURE SYS

Search across all available documentation for this part.

Active

3M (TC)

WIRE SPLICE ENCLOSURE SYS

Technical Specifications

Parameters and characteristics for this part

Specification	2178-XLB-B-02-01G-30N-0N

Features	3 Ground Plugs, 2 Cable Entry Kits, Fiber Optic Splices, 2532 Splice Tray
Length - Overall [x]	26.97 in
Length - Overall [x]	685 mm
Type	Enclosure System, Installed Sealing Gasket

Part	Length - Overall [x]	Length - Overall [x]	Features	Type	Accessory Type	For Use With/Related Products
3M (TC) 2178-XL-8G	26.97 in	685 mm	8 Ground Plugs Fiber Optic Splices	Enclosure System Installed Sealing Gasket
3M (TC) 2178-MLS	21.89 in	556 mm	2 Ground Plugs External Ground Isolation Fiber Optic Splices	Enclosure System Installed Sealing Gasket
3M (TC) 2178-S+81	21.89 in	556 mm	2 Ground Plugs 2181 Cable Addition Kit Fiber Optic Splices	Enclosure System Installed Sealing Gasket
3M (TC) 2178-LS	21.89 in	556 mm	2 Ground Plugs Fiber Optic Splices	Enclosure System Installed Sealing Gasket
3M (TC) 2178-XSB-EG-0T	14.57 in	370 mm	External Ground Fiber Optic Splices	Enclosure System Installed Sealing Gasket
3M (TC) 2178-S	21.89 in	556 mm	2 Ground Plugs Fiber Optic Splices	Enclosure System Installed Sealing Gasket
3M (TC) 2178-LS/4-LUG	21.89 in	556 mm	4 Ground Plugs Fiber Optic Splices	Enclosure System Installed Sealing Gasket
3M (TC) 2178-XLB-B-02-01G-30N-0N	26.97 in	685 mm	2 Cable Entry Kits 2532 Splice Tray 3 Ground Plugs Fiber Optic Splices	Enclosure System Installed Sealing Gasket
3M (TC) 2178-L/S-CSB-SMC-BRKT					Strain Relief Bracket	2178 Series Fiber Optic Splice Enclosures
3M (TC) 2178-XSB	14.57 in	370 mm	2 Ground Plugs Fiber Optic Splices	Enclosure System Installed Sealing Gasket

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Wire Splice Enclosure System, Installed Sealing Gasket 26.97" (685.0mm)
