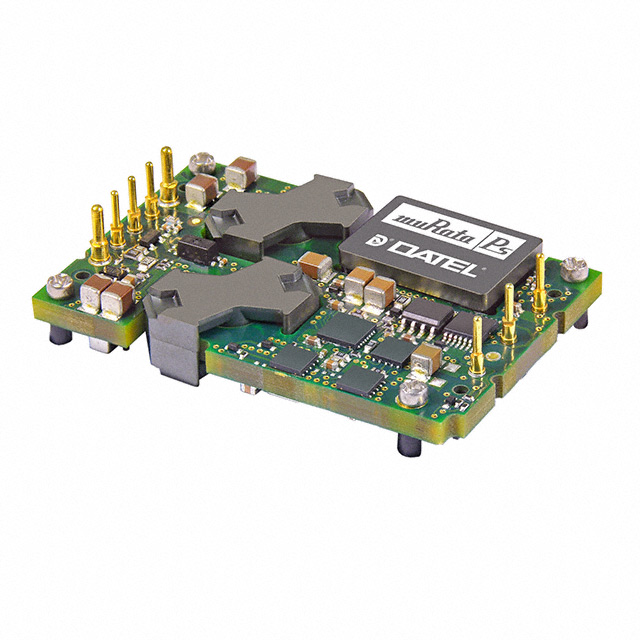

UQQ-3.3/25-Q12P-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 3.3V 82W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UQQ-3.3/25-Q12P-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 3.3V 82W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UQQ-3.3/25-Q12P-C |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active High, Enable |
| Current - Output (Max) [Max] | 25 A |
| Efficiency | 88 % |
| Features | OVP, Remote On/Off, SCP, OTP, UVLO |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 1/4 Brick, 8-DIP Module |
| Power (Watts) | 82 W |
| Size / Dimension [x] | 2.22 in |
| Size / Dimension [x] | 56.4 mm |
| Size / Dimension [y] | 1.45 in |
| Size / Dimension [y] | 36.8 mm |
| Size / Dimension [z] | 0.5 in |
| Size / Dimension [z] | 12.7 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Isolation | 2000 V |
| Voltage - Output 1 | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 30 | $ 114.03 | |
Description
General part information
UQQ-3.3 Series
Isolated Module DC DC Converter 1 Output 3.3V 25A 9V - 36V Input
