SBH41-NBPB-D40-SM-BK

Active

Sullins Connector Solutions

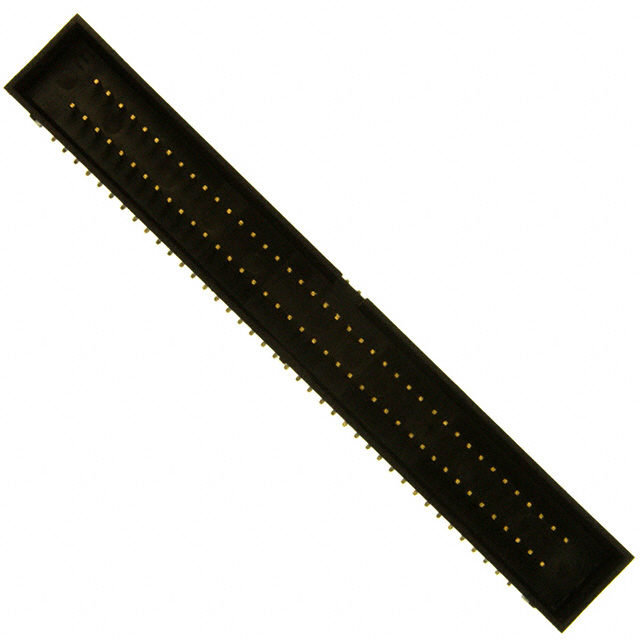

CONN HEADER SMD 80POS 1.27MM

Deep-Dive with AI

Search across all available documentation for this part.

SBH41-NBPB-D40-SM-BK

Active

Sullins Connector Solutions

CONN HEADER SMD 80POS 1.27MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SBH41-NBPB-D40-SM-BK

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	5.8 mm
Insulation Height	0.228 in
Insulation Material	Polyamide (PA9T), Nylon 9T
Mated Stacking Heights	10.4 mm, 13.1 mm, 7.1 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	80
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

SBH41 Series

Part	Contact Finish - Post	Number of Positions Loaded	Fastening Type	Insulation Height	Insulation Height	Contact Shape	Connector Type	Contact Type	Contact Finish Thickness - Mating	Mounting Type	Contact Finish Thickness - Post	Shrouding	Number of Rows	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Style	Contact Finish - Mating	Features	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post [x]	Contact Length - Post [x]	Termination	Contact Material	Insulation Material	Insulation Color	Number of Positions	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Mated Stacking Heights	Contact Length - Post	Contact Length - Post
Sullins Connector Solutions SBH41-NBPB-D40-RA-BK	Gold	All	Push-Pull	8.2 mm	0.323 in	Square	Header	Male Pin	Flash	Through Hole Right Angle	Flash	Shrouded - 4 Wall	2	0.05 in	1.27 mm	UL94 V-0	Board to Cable/Wire	Gold	Keying Slot	-40 °C	105 ░C	0.106 in	2.69 mm	Solder	Brass	Nylon 9T Polyamide (PA9T)	Black	80	2.54 mm	0.1 in
Sullins Connector Solutions SBH41-NBPB-D30-RA-BK	Gold	All	Push-Pull	8.2 mm	0.323 in	Square	Header	Male Pin	Flash	Through Hole Right Angle	Flash	Shrouded - 4 Wall	2	0.05 in	1.27 mm	UL94 V-0	Board to Cable/Wire	Gold	Keying Slot	-40 °C	105 ░C	0.106 in	2.69 mm	Solder	Brass	Nylon 9T Polyamide (PA9T)	Black	60	2.54 mm	0.1 in
Sullins Connector Solutions SBH41-NBPB-D20-ST-BK	Gold	All	Push-Pull	5.8 mm	0.228 in	Square	Header	Male Pin	Flash	Through Hole	Flash	Shrouded - 4 Wall	2	0.05 in	1.27 mm	UL94 V-0	Board to Cable/Wire	Gold	Keying Slot	-40 °C	105 ░C			Solder	Brass	Nylon 9T Polyamide (PA9T)	Black	40	2.54 mm	0.1 in	7.1 mm 9.7 mm 12.4 mm	0.118 in	3 mm
Sullins Connector Solutions SBH41-NBPB-D07-RA-BK	Gold	All	Push-Pull	8.2 mm	0.323 in	Square	Header	Male Pin	Flash	Through Hole Right Angle	Flash	Shrouded - 4 Wall	2	0.05 in	1.27 mm	UL94 V-0	Board to Cable/Wire	Gold	Keying Slot	-40 °C	105 ░C	0.106 in	2.69 mm	Solder	Brass	Nylon 9T Polyamide (PA9T)	Black	14	2.54 mm	0.1 in
Sullins Connector Solutions SBH41-NBPB-D25-ST-BK	Gold	All	Push-Pull	5.8 mm	0.228 in	Square	Header	Male Pin	Flash	Through Hole	Flash	Shrouded - 4 Wall	2	0.05 in	1.27 mm	UL94 V-0	Board to Cable/Wire	Gold	Keying Slot	-40 °C	105 ░C			Solder	Brass	Nylon 9T Polyamide (PA9T)	Black	50	2.54 mm	0.1 in	7.1 mm 9.7 mm 12.4 mm	0.118 in	3 mm
Sullins Connector Solutions SBH41-NBPB-D20-SP-BK	Gold	All	Push-Pull	5.8 mm	0.228 in	Square	Header	Male Pin	Flash	Surface Mount	Flash	Shrouded - 4 Wall	2	0.05 in	1.27 mm	UL94 V-0	Board to Cable/Wire	Gold	Board Guide Keying Slot	-40 °C	105 ░C			Solder	Brass	Nylon 9T Polyamide (PA9T)	Black	40	2.54 mm	0.1 in	7.1 mm 10.4 mm 13.1 mm
Sullins Connector Solutions SBH41-NBPB-D34-SP-BK	Gold	All	Push-Pull	5.8 mm	0.228 in	Square	Header	Male Pin	Flash	Surface Mount	Flash	Shrouded - 4 Wall	2	0.05 in	1.27 mm	UL94 V-0	Board to Cable/Wire	Gold	Board Guide Keying Slot	-40 °C	105 ░C			Solder	Brass	Nylon 9T Polyamide (PA9T)	Black	68	2.54 mm	0.1 in	7.1 mm 10.4 mm 13.1 mm
Sullins Connector Solutions SBH41-NBPB-D13-RA-BK	Gold	All	Push-Pull	8.2 mm	0.323 in	Square	Header	Male Pin	Flash	Through Hole Right Angle	Flash	Shrouded - 4 Wall	2	0.05 in	1.27 mm	UL94 V-0	Board to Cable/Wire	Gold	Keying Slot	-40 °C	105 ░C	0.106 in	2.69 mm	Solder	Brass	Nylon 9T Polyamide (PA9T)	Black	26	2.54 mm	0.1 in
Sullins Connector Solutions SBH41-NBPB-D40-SM-BK	Gold	All	Push-Pull	5.8 mm	0.228 in	Square	Header	Male Pin	Flash	Surface Mount	Flash	Shrouded - 4 Wall	2	0.05 in	1.27 mm	UL94 V-0	Board to Cable/Wire	Gold	Keying Slot	-40 °C	105 ░C			Solder	Brass	Nylon 9T Polyamide (PA9T)	Black	80	2.54 mm	0.1 in	7.1 mm 10.4 mm 13.1 mm
Sullins Connector Solutions SBH41-NBPB-D40-ST-BK	Gold	All	Push-Pull	5.8 mm	0.228 in	Square	Header	Male Pin	Flash	Through Hole	Flash	Shrouded - 4 Wall	2	0.05 in	1.27 mm	UL94 V-0	Board to Cable/Wire	Gold	Keying Slot	-40 °C	105 ░C			Solder	Brass	Nylon 9T Polyamide (PA9T)	Black	80	2.54 mm	0.1 in	7.1 mm 9.7 mm 12.4 mm	0.118 in	3 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1000	$ 2.15

Description

General part information

SBH41 Series

Connector Header Surface Mount 80 position 0.050" (1.27mm)
