VS2RN5R

Active

BANNER ENGINEERING

VS2 RECEIVER 1.2M NPN DO

Search across all available documentation for this part.

Active

BANNER ENGINEERING

VS2 RECEIVER 1.2M NPN DO

Technical Specifications

Parameters and characteristics for this part

Part	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Light Source	Sensing Distance	Sensing Distance	Sensing Method	Connection Method	Voltage - Supply [Max]	Voltage - Supply [Min]	Output Configuration	Response Time	Cable Length	Cable Length
BANNER ENGINEERING VS2RN5R	NEMA 6P IEC IP67	55 °C	-20 C	Red (660nm)	47.244 in	120 cm	Through-Beam	Cable	30 VDC	10 VDC	NPN - Dark-ON	1 ms	78.74 in	2 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 89.00
Newark	Each	1	$ 90.00

General part information

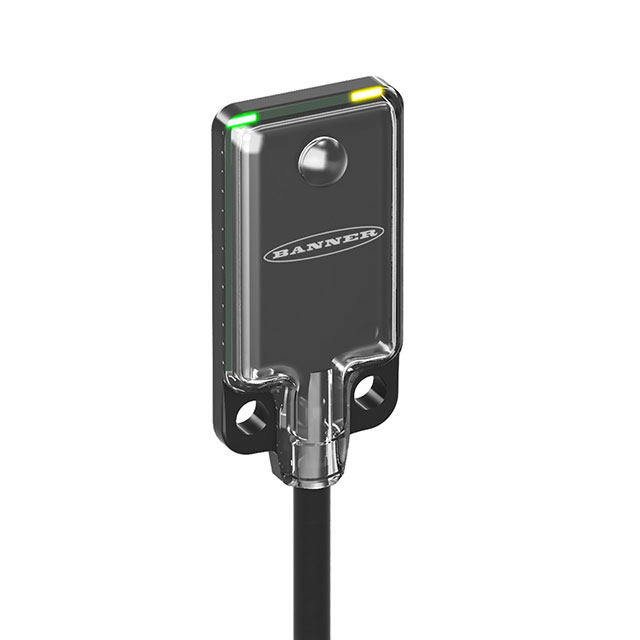

Through-Beam Optical Sensor 47.244" (1.2m) NPN - Dark-ON

Technical documentation and resources
