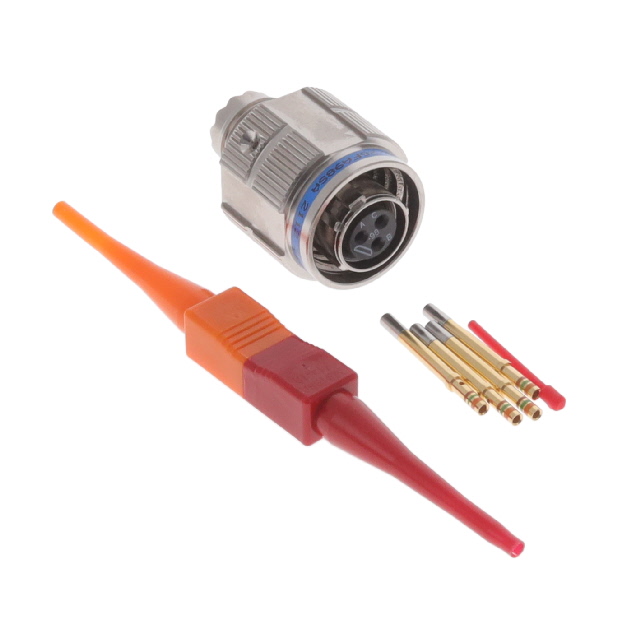

D38999/26FA98SA

Active

Amphenol Aerospace Operations

CONN PLUG FMALE 3POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D38999/26FA98SA

Active

Amphenol Aerospace Operations

CONN PLUG FMALE 3POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/26FA98SA

Applications	Aviation, Aerospace, Marine, Military
Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Features	Coupling Nut
Grade	Military
Ingress Protection	Environment Resistant
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Orientation	A
Primary Material	Metal
Qualification	MIL-DTL-38999 Series III
Shell Finish	Electroless Nickel
Shell Material	Aluminum
Shell Size - Insert [Max]	98
Shell Size - Insert [Min]	9
Shell Size, MIL	A
Shielding	Shielded
Termination	Crimp

D38999/26FA Series

Part	Shell Finish	Ingress Protection	Color	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Shielding	Shell Material	Connector Type	Contact Material	Orientation	Features	Backshell Material, Plating	Grade	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Qualification	Termination	Contact Finish - Mating	Shell Size, MIL	Mounting Type	Primary Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Contact Size	Type	Contact Shape	Note	Housing Color	Contact Type
Amphenol Aerospace Operations D38999/26FA98SN-U	Electroless Nickel	Environment Resistant	Silver	-65 ░C	200 °C	Aviation Marine Military	Unshielded	Aluminum	Female Sockets Plug	Copper Alloy	N	Backshell Coupling Nut Self Locking	Metal	Military	98	9	MIL-DTL-38999 Series III	Crimp	Gold	A	Free Hanging (In-Line)	Metal	1.27 µm	50 µin
Amphenol Aerospace Operations D38999/26FA35PN	Electroless Nickel	Environment Resistant	Silver	-65 ░C	200 °C	Aerospace Aviation Marine Military	Shielded	Aluminum	Male Pins Plug	Copper Alloy	N	Coupling Nut		Military	35	9	MIL-DTL-38999 Series III	Crimp	Gold	A	Free Hanging (In-Line)	Metal	1.27 µm	50 µin	6
Amphenol Aerospace Operations D38999/26FA98HN-LC	Electroless Nickel	Environment Resistant		-65 ░C	200 °C		Shielded	Aluminum	Plug Housing		N	Coupling Nut Self Locking		Military	98	9	MIL-DTL-38999 Series III			A	Free Hanging (In-Line)					20	For Male Pins	Circular	Contacts Not Included	Silver	Crimp
Amphenol Aerospace Operations D38999/26FA98HN	Electroless Nickel	Environment Resistant	Silver	-65 ░C	200 °C	Aviation Marine Military	Shielded	Aluminum	Male Pins Plug	Copper Alloy	N	Coupling Nut Self Locking		Military	98	9	MIL-DTL-38999 Series III	Crimp	Gold	A	Free Hanging (In-Line)	Metal	2.54 çm	100 çin
Amphenol Aerospace Operations D38999/26FA98SA	Electroless Nickel	Environment Resistant	Silver	-65 ░C	200 °C	Aerospace Aviation Marine Military	Shielded	Aluminum	Female Sockets Plug	Copper Alloy	A	Coupling Nut		Military	98	9	MIL-DTL-38999 Series III	Crimp	Gold	A	Free Hanging (In-Line)	Metal	1.27 µm	50 µin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 63.36
		10	$ 54.91
		25	$ 48.45
		50	$ 43.35
		100	$ 38.02
	Bulk	1	$ 183.32
		10	$ 169.87
		25	$ 163.76
		50	$ 162.54

Description

General part information

D38999/26FA Series

3 Position Circular Connector Plug, Female Sockets Crimp

Documents

Technical documentation and resources
