NV6125
ActiveGeneSiC Semiconductor
IC PWR GANFAST N-CH 1:1 30QFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NV6125
ActiveGeneSiC Semiconductor
IC PWR GANFAST N-CH 1:1 30QFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NV6125 |
|---|---|
| Current - Output (Max) [Max] | 8 A |
| Input Type | Non-Inverting |
| Interface | PWM |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | High Side or Low Side |
| Output Type | N-Channel |

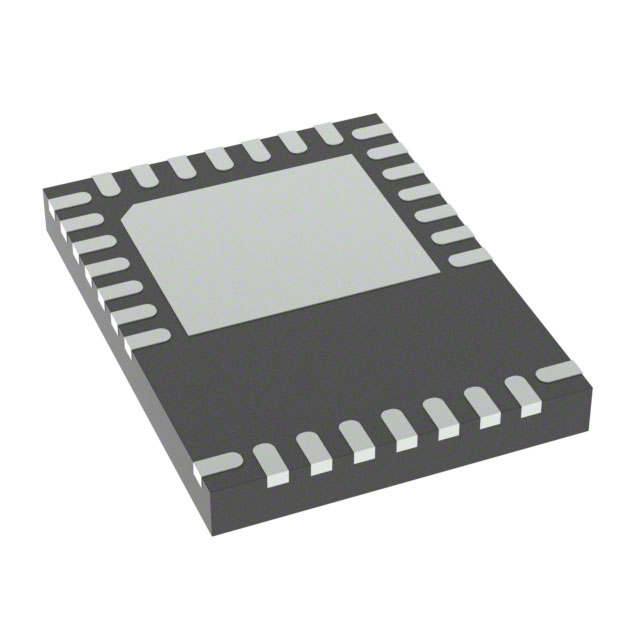

| Package / Case | 30-PowerVQFN |
| Ratio - Input:Output [custom] | 1:1 |
| Supplier Device Package | 30-QFN (6x8) |
| Switch Type | General Purpose |
| Voltage - Load | 650 V |
| Voltage - Supply (Vcc/Vdd) [Max] | 24 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 10 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.29 | |
| 10 | $ 3.86 | |||
| 25 | $ 3.65 | |||
| 100 | $ 3.16 | |||
| 250 | $ 3.00 | |||
| 500 | $ 2.69 | |||
| 1000 | $ 2.27 | |||
| 2500 | $ 2.15 | |||
| Digi-Reel® | 1 | $ 4.29 | ||
| 10 | $ 3.86 | |||
| 25 | $ 3.65 | |||
| 100 | $ 3.16 | |||
| 250 | $ 3.00 | |||
| 500 | $ 2.69 | |||
| 1000 | $ 2.27 | |||
| 2500 | $ 2.15 | |||
| Tape & Reel (TR) | 5000 | $ 2.00 | ||
Description
General part information
NV6125 Series
Power Switch/Driver 1:1 N-Channel 8A 30-QFN (6x8)
Documents
Technical documentation and resources
