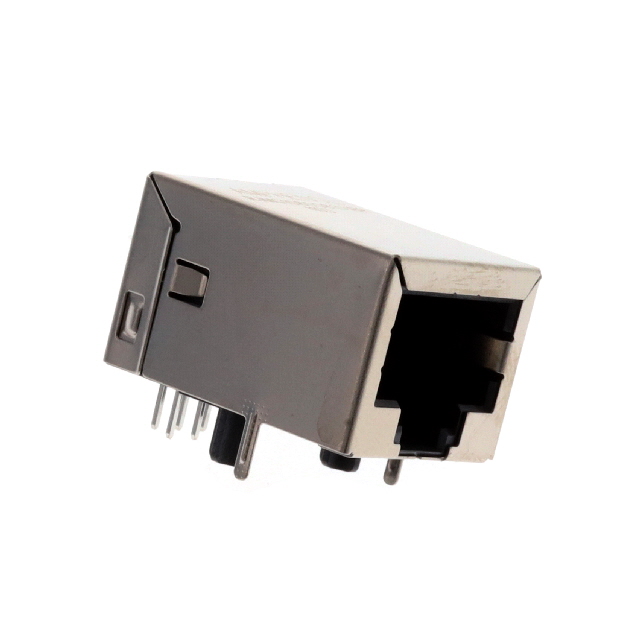

RJMG1S8008101BR
ActiveAmphenol ICC (Commercial Products)
RJMG 1X1 10/100, NO LEDS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RJMG1S8008101BR
ActiveAmphenol ICC (Commercial Products)
RJMG 1X1 10/100, NO LEDS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RJMG1S8008101BR |
|---|---|
| Applications | 10/100 Base-T, AutoMDIX |
| Connector Type | RJ45 |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.152 Ám |
| Contact Finish Thickness | 6 Áin |
| Contact Material | Phosphor Bronze |
| Features | Board Guide, Filter |
| Height Above Board | 0.532 in |
| Height Above Board | 13.51 mm |
| LED Color | Does Not Contain LED |
| Mounting Type | Through Hole, Panel Mount |
| Number of Ports | 1 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | 90 ° |
| Shield Material | Stainless Steel |
| Shielding | Shielded |
| Tab Direction | Down |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.80 | |
| 10 | $ 1.57 | |||
| 25 | $ 1.50 | |||
| 70 | $ 1.47 | |||
| 140 | $ 1.40 | |||
| 280 | $ 1.27 | |||
| 490 | $ 1.17 | |||
| 980 | $ 1.00 | |||
| 2450 | $ 0.93 | |||
Description
General part information
RJMG1S8 Series
1 Port RJ45Panel Mount, Through Hole 10/100 Base-T, AutoMDIX
