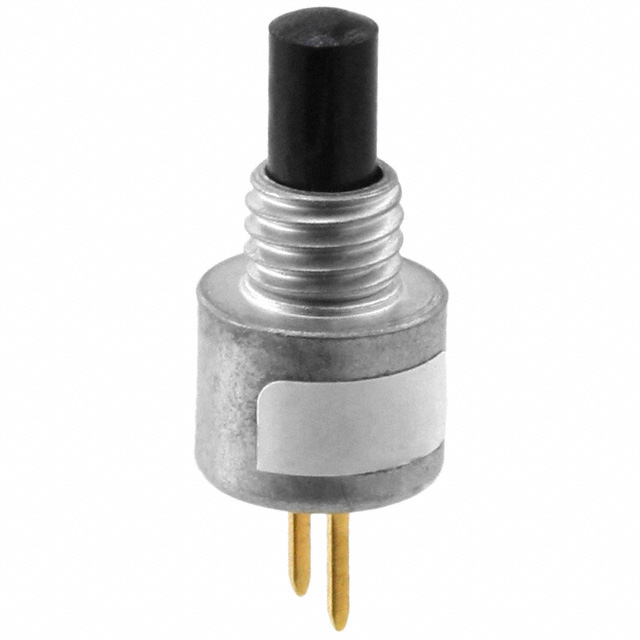

39-405 BLK

Active

Grayhill Inc.

SWITCH PUSH SPST-NO 0.15A 28V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH PUSH SPST-NO 0.15A 28V

Technical Specifications

Parameters and characteristics for this part

Specification	39-405 BLK

Actuator Marking	No Marking
Actuator Type	Round, Plunger
Circuit	SPST-NO
Color - Actuator/Cap	Black
Current Rating (Amps)	150 mA
Electrical Life	1000000 Cycles
Mounting Type	Panel Mount, Rear
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	4.37 mm
Switch Function	Off-Mom
Termination Style	PC Pin
Type	Standard
Voltage Rating - DC	28 V

Part	Current Rating (Amps)	Actuator Type	Electrical Life	Voltage Rating - DC	Termination Style	Actuator Marking	Circuit	Panel Cutout Dimensions [diameter]	Type	Mounting Type	Switch Function	Color - Actuator/Cap	Operating Temperature [Max]	Operating Temperature [Min]
Grayhill Inc. 39-405 BLK	150 mA	Round Plunger	1000000 Cycles	28 V	PC Pin	No Marking	SPST-NO	4.37 mm	Standard	Panel Mount Rear	Off-Mom	Black	85 °C	-40 °C
Grayhill Inc. 39-405 RED	150 mA	Round Plunger	1000000 Cycles	28 V	PC Pin	No Marking	SPST-NO	4.37 mm	Standard	Panel Mount Rear	Off-Mom	Red	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard Panel Mount, Rear
