095-668-45108
ActiveAmphenol RF

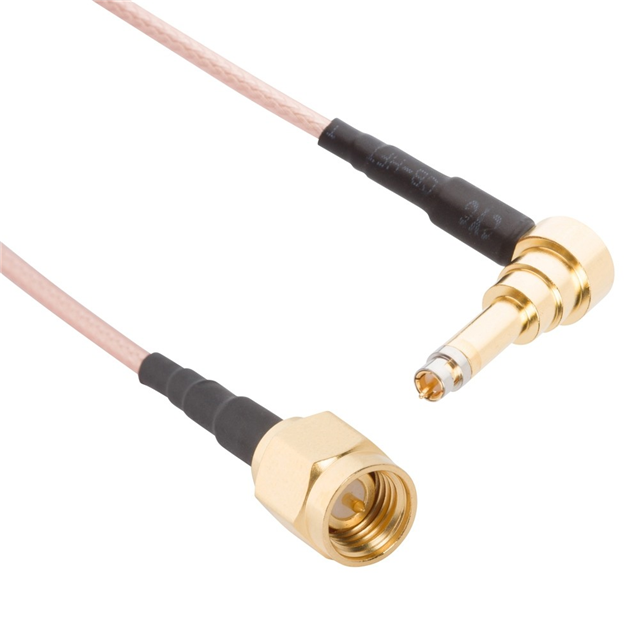

RF CABLE ASSEMBLY SMA STRAIGHT PLUG TO SWITCH PROBE RIGHT ANGLE PLUG 1.37 MM MICRO-CABLE 250 MM LENGTH 50 OHMS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
095-668-45108
ActiveAmphenol RF
RF CABLE ASSEMBLY SMA STRAIGHT PLUG TO SWITCH PROBE RIGHT ANGLE PLUG 1.37 MM MICRO-CABLE 250 MM LENGTH 50 OHMS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 095-668-45108 |
|---|---|
| 1st Connector | SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | Probe, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| Cable Type [diameter] | 1.37 mm |
| Color | Black |
| Frequency - Max [Max] | 6000 MHz |
| Length [x] | 9.843 " |
| Length [x] | 250 mm |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | SMA to Probe |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 101.12 | |
| 10 | $ 85.96 | |||
| 25 | $ 80.58 | |||
| 50 | $ 76.74 | |||
| 100 | $ 73.08 | |||
Description
General part information
095-668 Series
Cable Assembly Coaxial SMA to Probe 1.37mm OD Coaxial Cable 9.843" (250.00mm)
