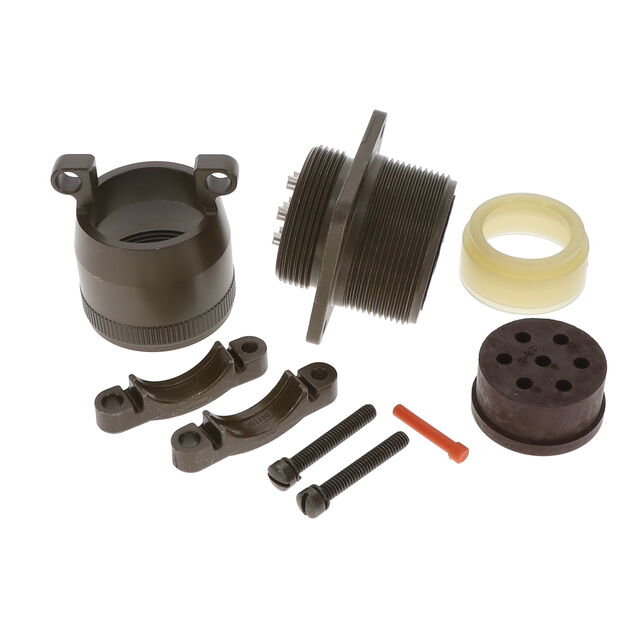

MS3100E24-2S - MS3100E24-2S

MS3100E24-2S

Active
Amphenol Industrial Operations

MIL-5015 MS/AC THREADED RECEPT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
MS3100E24-2S - MS3100E24-2S

MS3100E24-2S

Active
Amphenol Industrial Operations

MIL-5015 MS/AC THREADED RECEPT

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationMS3100E24-2S
ApplicationsMilitary, Marine
Cable Opening [custom]0.781 in
Cable Opening [custom]19.84 mm
ColorOlive Drab
Connector TypeReceptacle, Female Sockets
Contact Finish - MatingSilver
Contact MaterialCopper Alloy
Current Rating (Amps)23 A
FeaturesCable Clamp
Ingress ProtectionEnvironment Resistant
Insert MaterialNeoprene
Mounting FeatureFlange
Number of Positions7
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
OrientationN
Primary MaterialMetal
QualificationMIL-5015
Shell FinishOlive Drab Chromate over Cadmium
Shell MaterialAluminum Alloy
Shell Size - Insert24-2
ShieldingUnshielded
Voltage Rating1250 VDC, 900 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBag 1$ 66.67
10$ 61.18
25$ 58.83
50$ 56.87
100$ 53.73

Description

General part information

MS3100E24 Series

7 Position Circular Connector Receptacle, Female Sockets Solder Cup
