M24308/2-4Z

Active

Cinch Connectivity Solutions Trompeter

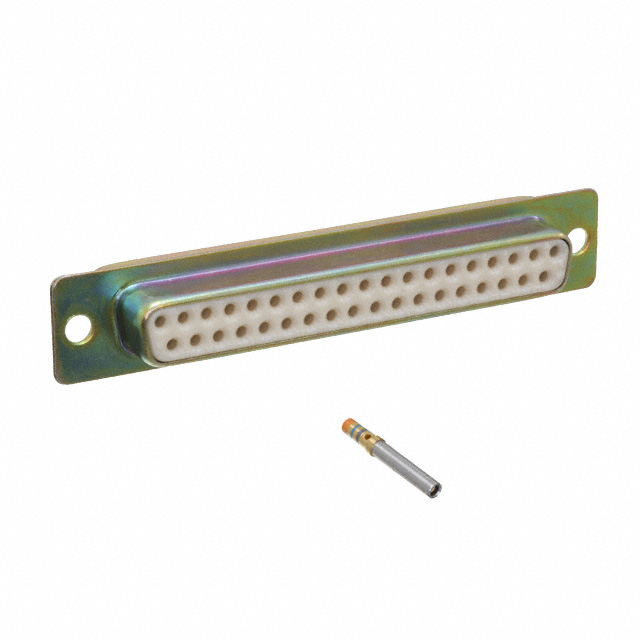

CONN D-SUB SKT 37 POS SOLDER CUP ST CABLE MOUNT 37 TERMINAL 1 PORT

Deep-Dive with AI

Search across all available documentation for this part.

M24308/2-4Z

Active

Cinch Connectivity Solutions Trompeter

CONN D-SUB SKT 37 POS SOLDER CUP ST CABLE MOUNT 37 TERMINAL 1 PORT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M24308/2-4Z

Color	Green
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Phosphor Bronze
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Diallyl Phthalate (DAP), Glass Filled
Flange Feature	Housing/Shell (Unthreaded)
Number of Positions	37
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Shell Material, Finish	Steel, Yellow Chromate Plated Zinc
Shell Size, Connector Layout	4 (DC, C)
Termination	Crimp

M24308/2 Series

Part	Mating Cycles	Connector Type	Color	Dielectric Material	Number of Rows	Note	Connector Style	Mounting Type	Shell Material, Finish	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Flange Feature	Contact Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Finish Thickness	Contact Finish Thickness	Features	Contact Material	Contact Finish	Current Rating (Amps)	Termination	Shell Size, Connector Layout	Shell Size, Connector Layout
Cinch Connectivity Solutions Trompeter M24308/2-292F	500	Receptacle for Female Contacts	Green	Diallyl Phthalate (DAP) Glass Filled	2	Contacts Not Included	D-Sub	Free Hanging (In-Line)	Steel Yellow Chromate Plated Cadmium	9	125 °C	-65 ░C	Housing/Shell (Unthreaded)	Signal	DE E	1
Cinch Connectivity Solutions Trompeter M24308/2-8F		Receptacle Female Sockets	Green	Diallyl Phthalate (DAP) Glass Filled	2		D-Sub		Steel Yellow Chromate Plated Cadmium		125 °C	-65 ░C	Housing/Shell (Unthreaded)	Signal	B DB	3	50 µin	1.27 µm	Tools Included	Phosphor Bronze	Gold	5 A	Crimp
Cinch Connectivity Solutions Trompeter M24308/2-344Z		Receptacle Female Sockets	Green	Diallyl Phthalate (DAP) Glass Filled	2		D-Sub		Steel Yellow Chromate Plated Zinc		125 °C	-65 ░C	Housing/Shell (Unthreaded)	Signal	B DB	3	50 µin	1.27 µm		Phosphor Bronze	Gold	5 A	Crimp
Cinch Connectivity Solutions Trompeter M24308/2-281Z	500	Receptacle for Female Contacts	Green	Diallyl Phthalate (DAP) Glass Filled	2	Contacts Not Included	D-Sub	Free Hanging (In-Line)	Steel Yellow Chromate Plated Zinc	9	125 °C	-65 ░C	Housing/Shell (Unthreaded)	Signal	DE E	1
Cinch Connectivity Solutions Trompeter M24308/2-3F		Receptacle Female Sockets	Green	Diallyl Phthalate (DAP) Glass Filled	2		D-Sub		Steel Yellow Chromate Plated Cadmium		125 °C	-65 ░C	Housing/Shell (Unthreaded)	Signal	B DB	3	50 µin	1.27 µm		Phosphor Bronze	Gold	5 A	Crimp
Cinch Connectivity Solutions Trompeter M24308/2-7F		Receptacle Female Sockets	Green	Diallyl Phthalate (DAP) Glass Filled	2		D-Sub		Steel Yellow Chromate Plated Cadmium	15	125 °C	-65 ░C	Housing/Shell (Unthreaded)	Signal			50 µin	1.27 µm	Tools Included	Phosphor Bronze	Gold	5 A	Crimp	2
Cinch Connectivity Solutions Trompeter M24308/2-2Z		Receptacle Female Sockets	Green	Diallyl Phthalate (DAP) Glass Filled	2		D-Sub		Steel Yellow Chromate Plated Zinc	15	125 °C	-65 ░C	Housing/Shell (Unthreaded)	Signal			50 µin	1.27 µm		Phosphor Bronze	Gold	5 A	Crimp	2
Cinch Connectivity Solutions Trompeter M24308/2-2F		Receptacle Female Sockets	Green	Diallyl Phthalate (DAP) Glass Filled	2		D-Sub		Steel Yellow Chromate Plated Cadmium	15	125 °C	-65 ░C	Housing/Shell (Unthreaded)	Signal			50 µin	1.27 µm		Phosphor Bronze	Gold	5 A	Crimp	2
Cinch Connectivity Solutions Trompeter M24308/2-4Z		Receptacle Female Sockets	Green	Diallyl Phthalate (DAP) Glass Filled	2		D-Sub		Steel Yellow Chromate Plated Zinc	37	125 °C	-65 ░C	Housing/Shell (Unthreaded)	Signal			50 µin	1.27 µm		Phosphor Bronze	Gold	5 A	Crimp		4 (DC C)
Cinch Connectivity Solutions Trompeter M24308/2-285F	500	Receptacle for Female Contacts	Green	Diallyl Phthalate (DAP) Glass Filled	3	Contacts Not Included	D-Sub	Free Hanging (In-Line)	Steel Yellow Chromate Plated Cadmium	50	125 °C	-65 ░C	Housing/Shell (Unthreaded)	Signal										5
