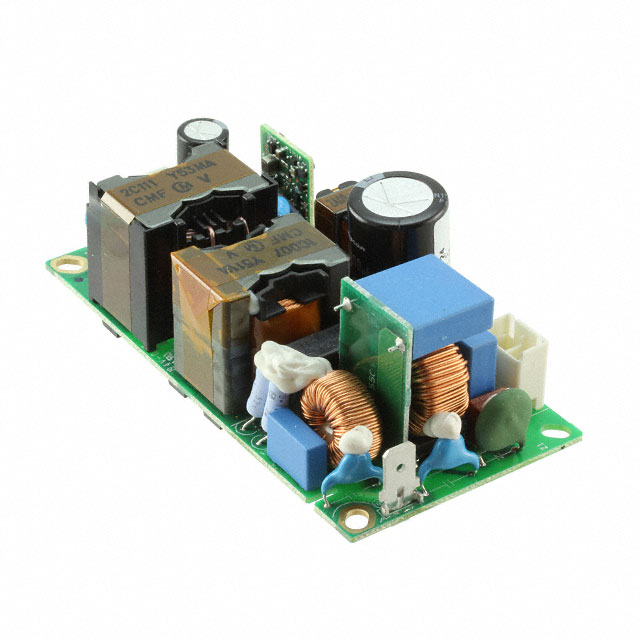

MVAD160-125
ObsoleteMurata Power Solutions Inc.
AC/DC CONVERTER 12V 110W
Deep-Dive with AI
Search across all available documentation for this part.
MVAD160-125
ObsoleteMurata Power Solutions Inc.
AC/DC CONVERTER 12V 110W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MVAD160-125 |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | CB, CE, cURus, VDE |
| Current - Output 1 | 13.34 A |
| Efficiency | 92 % |
| Features | Remote Sense, Standby Output, Universal Input, Remote On/Off, DC Input Capable |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 160 W, 110 W |
| Size / Dimension [x] | 4 in |
| Size / Dimension [x] | 101.6 mm |
| Size / Dimension [y] | 2 in |
| Size / Dimension [y] | 50.8 mm |
| Size / Dimension [z] | 38.1 mm |
| Size / Dimension [z] | 1.5 " |
| Type | Open Frame |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MVAD160 Series
Open Frame AC DC Converters 1 Output 12V 85 ~ 264 VAC Input
