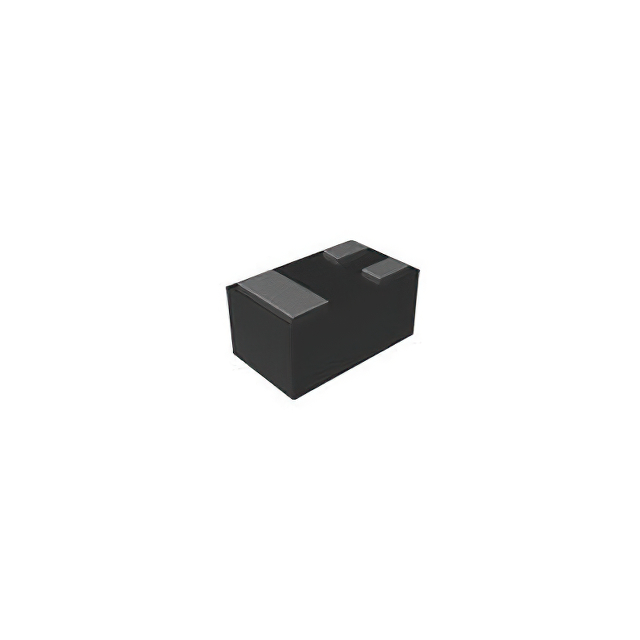

2N7002KL3A-TP

Active

Micro Commercial Components

SMALL SIGNAL FIELD-EFFECT TRANSISTOR, 0.26A I(D), 60V,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2N7002KL3A-TP

Active

Micro Commercial Components

SMALL SIGNAL FIELD-EFFECT TRANSISTOR, 0.26A I(D), 60V,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2N7002KL3A-TP

Current - Continuous Drain (Id) @ 25°C	260 mA
Drain to Source Voltage (Vdss)	60 V
Drive Voltage (Max Rds On, Min Rds On)	10 V, 4.5 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs	1.22 nC
Input Capacitance (Ciss) (Max) @ Vds	21 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	SOT-883, SC-101
Power Dissipation (Max) [Max]	200 mW
Rds On (Max) @ Id, Vgs	2.5 Ohm
Supplier Device Package	DFN1006-3
Technology	MOSFET (Metal Oxide)
Vgs (Max)	20 V
Vgs(th) (Max) @ Id	2.5 V

2N7002 Series

Part	Gate Charge (Qg) (Max) @ Vgs [Max]	Package / Case	Supplier Device Package	Vgs (Max)	Operating Temperature [Min]	Operating Temperature [Max]	Vgs(th) (Max) @ Id	Input Capacitance (Ciss) (Max) @ Vds	Rds On (Max) @ Id, Vgs	FET Type	Technology	Power Dissipation (Max) [Max]	Mounting Type	Current - Continuous Drain (Id) @ 25°C	Drive Voltage (Max Rds On, Min Rds On)	Drain to Source Voltage (Vdss)	Drive Voltage (Max Rds On, Min Rds On) [Max]	Drive Voltage (Max Rds On, Min Rds On) [Min]	Vgs(th) (Max) @ Id [Max]	Configuration	Power - Max [Max]	Gate Charge (Qg) (Max) @ Vgs	Grade	Qualification
Micro Commercial Components 2N7002KS-TP	1.7 nC	SC-59 SOT-23-3 TO-236-3	SOT-23	20 V	-55 °C	150 °C	2.5 V	27 pF	2.2 Ohm	N-Channel	MOSFET (Metal Oxide)	350 mW	Surface Mount	340 mA	4.5 V 10 V	60 V
Micro Commercial Components 2N7002HV-TP		SC-59 SOT-23-3 TO-236-3	SOT-23	20 V	-55 °C	150 °C	1.8 V	50 pF	7.5 Ohm	N-Channel	MOSFET (Metal Oxide)	200 mW	Surface Mount	115 mA		60 V	10 V	5 V
Micro Commercial Components 2N7002KV-TP		SOT-563 SOT-666	SOT-563		-55 °C	150 °C		40 pF	5 Ohm		MOSFET (Metal Oxide)		Surface Mount	340 mA		60 V			2.5 V	2 N-Channel (Dual)
Micro Commercial Components 2N7002KT-TP		SOT-523	SOT-523	20 V	-55 °C	150 °C		40 pF	5 Ohm	N-Channel	MOSFET (Metal Oxide)	350 mW	Surface Mount	115 mA	4.5 V 10 V	60 V			2.5 V
Micro Commercial Components 2N7002DW-TPQ2		6-TSSOP SC-88 SOT-363	SOT-363		-55 °C	150 °C	2.5 V	50 pF	2.5 Ohm		MOSFET (Metal Oxide)		Surface Mount	340 mA		60 V				2 N-Channel	300 mW
Micro Commercial Components 2N7002KL3-TP		SC-101 SOT-883	DFN1006-3	20 V	-55 °C	150 °C	2.3 V	80 pF	1.5 Ohm	N-Channel	MOSFET (Metal Oxide)	100 mW	Surface Mount	410 mA	4.5 V 10 V	60 V						2.8 nC
Micro Commercial Components 2N7002KHE3-TP		SC-59 SOT-23-3 TO-236-3	SOT-23	20 V	-55 °C	150 °C		40 pF	2.5 Ohm	N-Channel	MOSFET (Metal Oxide)	350 mW	Surface Mount	340 mA	4.5 V 10 V	60 V			2.5 V				Automotive	AEC-Q101
Micro Commercial Components 2N7002KL3A-TP		SC-101 SOT-883	DFN1006-3	20 V	-55 °C	150 °C	2.5 V	21 pF	2.5 Ohm	N-Channel	MOSFET (Metal Oxide)	200 mW	Surface Mount	260 mA	4.5 V 10 V	60 V						1.22 nC
Micro Commercial Components 2N7002KWHE3-TP		SC-70 SOT-323	SOT-323	20 V	-55 °C	150 °C	2 V	40 pF	2.5 Ohm	N-Channel	MOSFET (Metal Oxide)	200 mW	Surface Mount	340 mA	4.5 V 10 V	60 V							Automotive	AEC-Q101
Micro Commercial Components 2N7002KDW-TP-HF		6-TSSOP SC-88 SOT-363	SOT-363		-55 °C	150 °C		40 pF	3 Ohm		MOSFET (Metal Oxide)		Surface Mount	340 mA		60 V			2.5 V	2 N-Channel	300 mW

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.17
		10	$ 0.12
		100	$ 0.07
		500	$ 0.05
		1000	$ 0.04
		2000	$ 0.03
		5000	$ 0.03
	Digi-Reel®	1	$ 0.17
		10	$ 0.12
		100	$ 0.07
		500	$ 0.05
		1000	$ 0.04
		2000	$ 0.03
		5000	$ 0.03
	Tape & Reel (TR)	10000	$ 0.03
		20000	$ 0.02
		30000	$ 0.02
		50000	$ 0.02
		70000	$ 0.02
		100000	$ 0.02
		250000	$ 0.02
		500000	$ 0.02

Description

General part information

2N7002 Series

N-Channel 60 V 260mA (Ta) 200mW Surface Mount DFN1006-3
