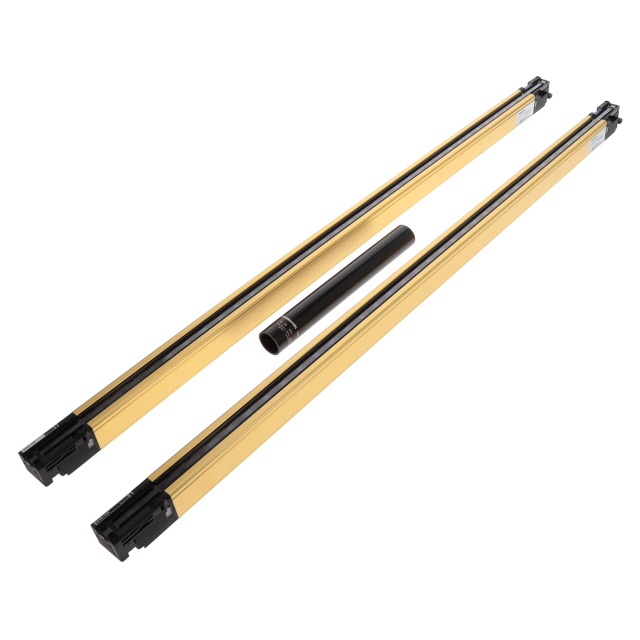

SF4D-H40

Active

Panasonic Industrial Automation Sales

LIGHT CURTAIN HAND 25MM

Search across all available documentation for this part.

Active

Panasonic Industrial Automation Sales

LIGHT CURTAIN HAND 25MM

Technical Specifications

Parameters and characteristics for this part

Specification	SF4D-H40

Beam Pitch	20 mm
Detection Capability	25 mm
Features	Blanking, Muting Function
Ingress Protection	IP67
Ingress Protection	IP65
Ingress Protection	NEMA 13
Number of Beams	40
Operating Range [Max]	9 m, 15 m
Operating Range [Min]	0.8 m, 0.2 m
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C
Protection	Hand
Protective Height	790 mm
Voltage - Supply	24 VDC

Part	Protective Height	Protection	Features	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Voltage - Supply	Number of Beams	Detection Capability	Beam Pitch	Ingress Protection	Ingress Protection	Ingress Protection	Operating Range [Min]	Operating Range [Max]	Number of Beams [custom]
Panasonic Industrial Automation Sales SF4D-H40	790 mm	Hand	Blanking Muting Function	55 °C	-10 °C	24 VDC	40	25 mm	20 mm	IP67	IP65	NEMA 13	0.2 m 0.8 m	9 m 15 m
Panasonic Industrial Automation Sales SF4D-H96		Hand	Blanking Muting Function	55 °C	-10 °C	24 VDC	96	25 mm	20 mm	IP67	IP65	NEMA 13	0.2 m 0.8 m	9 m 15 m
Panasonic Industrial Automation Sales SF4D-H32	630 mm	Hand	Blanking Muting Function	55 °C	-10 °C	24 VDC	32	25 mm	20 mm	IP67	IP65	NEMA 13	0.2 m 0.8 m	9 m 15 m
Panasonic Industrial Automation Sales SF4D-H20	390 mm	Hand	Blanking Muting Function	55 °C	-10 °C	24 VDC		25 mm	20 mm	IP67	IP65	NEMA 13	0.2 m 0.8 m	9 m 15 m	20
Panasonic Industrial Automation Sales SF4D-H16	310 mm	Hand	Blanking Muting Function	55 °C	-10 °C	24 VDC	16	25 mm	20 mm	IP67	IP65	NEMA 13	0.2 m 0.8 m	9 m 15 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1929.01

General part information

Light Curtain 25mm Hand Blanking, Muting Function

Technical documentation and resources

No documents available
