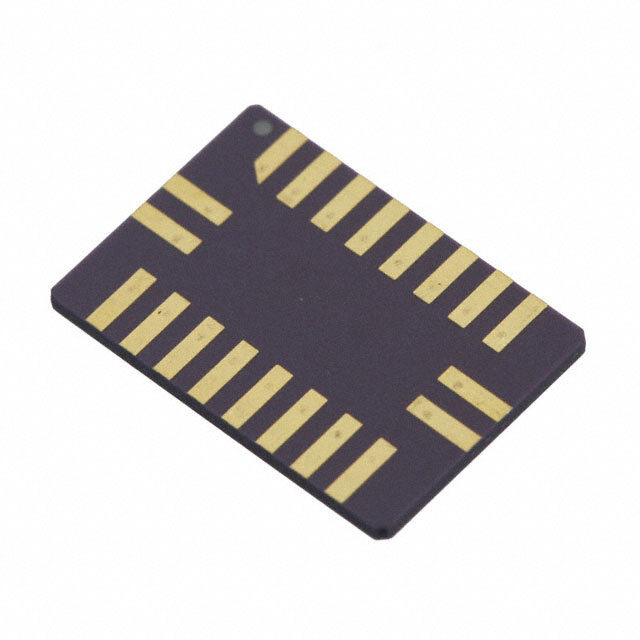

TR1004
ObsoleteMurata Power Solutions Inc.
IC RF TXRX ISM<1GHZ SM-20H
Deep-Dive with AI
Search across all available documentation for this part.
TR1004
ObsoleteMurata Power Solutions Inc.
IC RF TXRX ISM<1GHZ SM-20H
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TR1004 |
|---|---|
| Current - Transmitting | 12 mA |
| Data Rate (Max) [Max] | 115.2 kbps |
| Frequency | 914 MHz |
| Modulation | ASK, OOK |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 20-SMD Module |
| Power - Output | 1.5 dBm |
| RF Family/Standard | General ISM < 1GHz |
| Sensitivity | -106 dBm |
| Supplier Device Package | SM-20H |
| Type | TxRx Only |
| Voltage - Supply [Max] | 3.7 V |
| Voltage - Supply [Min] | 2.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
TR10 Series
IC RF TxRx Only General ISM < 1GHz 914MHz 20-SMD Module
Documents
Technical documentation and resources
No documents available
