C11191_TUIJA-3-W

Active

LEDiL

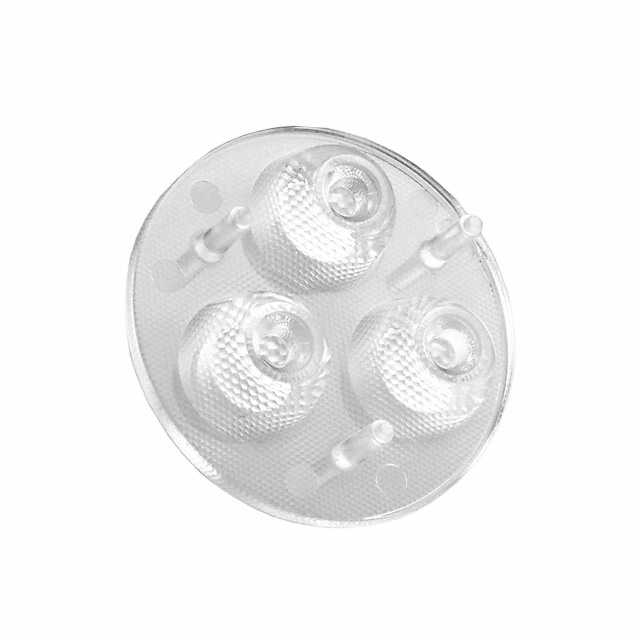

LED LENS, MULTI-LED, WIDE, TRANSPARENT, 50 MM, ROUND, PMMA (POLYMETHYLMETHACRYLATE)

Search across all available documentation for this part.

Active

LEDiL

LED LENS, MULTI-LED, WIDE, TRANSPARENT, 50 MM, ROUND, PMMA (POLYMETHYLMETHACRYLATE)

Technical Specifications

Parameters and characteristics for this part

Specification	C11191_TUIJA-3-W

Color	Clear
For Use With/Related Manufacturer	Osram, Seoul, Sharp, Lumileds, Cree, Nichia
Lens Size [diameter]	50 mm
Lens Transparency	Diffused
Material	Acrylic
Mounting Type	Adhesive
Number of LEDs	3
Optical Pattern	Wide
Type	Lens with Integrated Mount
Viewing Angle [Max]	59 °
Viewing Angle [Min]	46 °

Part	For Use With/Related Manufacturer	Type	Lens Transparency	Lens Size [diameter]	Viewing Angle [Min]	Viewing Angle [Max]	Optical Pattern	Color	Material	Mounting Type	Number of LEDs
LEDiL C11191_TUIJA-3-W	Cree Lumileds Nichia Osram Seoul Sharp	Lens with Integrated Mount	Diffused	50 mm	46 °	59 °	Wide	Clear	Acrylic	Adhesive	3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Lens with Integrated Mount Clear 46° ~ 59° Wide Adhesive
