ATS-H1-24-C1-R0

Active

Advanced Thermal Solutions Inc.

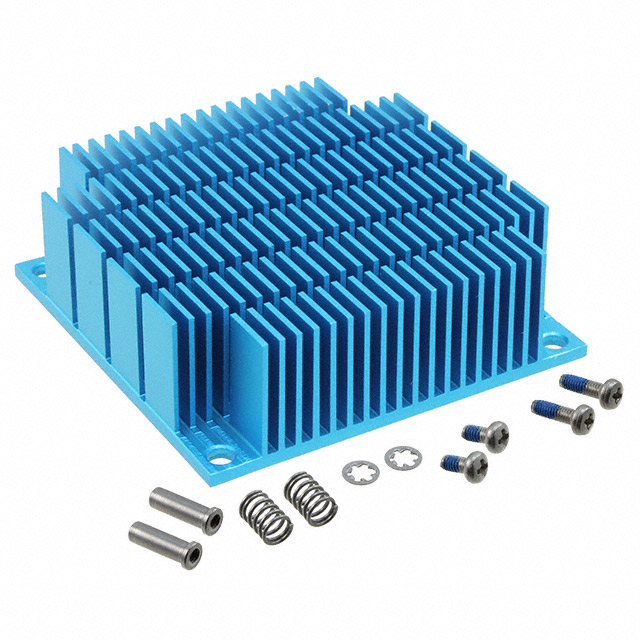

HEATSINK 60X60X20MM XCUT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ATS-H1-24-C1-R0

Active

Advanced Thermal Solutions Inc.

HEATSINK 60X60X20MM XCUT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ATS-H1-24-C1-R0

Attachment Method	Push Pin
Fin Height [z]	0.79 in
Fin Height [z]	20 mm
Length [x]	60 mm
Length [x]	2.362 in
Material	Aluminum
Material Finish	Blue Anodized
Package Cooled	ASIC, BGA, LGA, CPU
Shape	Square, Fins
Thermal Resistance @ Forced Air Flow	8.36 °C/W, 100 LFM
Type	Top Mount
Width [x]	60 mm
Width [x]	2.362 in

ATS-H1 Series

...

Part	Material Finish	Shape	Width [x]	Width [x]	Thermal Resistance @ Forced Air Flow	Package Cooled	Attachment Method	Type	Fin Height	Fin Height	Material	Fin Height [z]	Fin Height [z]	Width [y]	Width [y]	Length	Length	Length [x]	Length [x]	Width	Width
Advanced Thermal Solutions Inc. ATS-H1-96-C1-R0	Blue Anodized	Fins Square	1.575 in	40 mm	5.6 °C/W	ASIC BGA CPU LGA	Push Pin	Top Mount	1.378 in	35 mm	Aluminum
Advanced Thermal Solutions Inc. ATS-H1-133-C2-R0	Blue Anodized	Fins Square			7.42 °C/W 100 LFM	ASIC BGA CPU LGA	Push Pin	Top Mount			Aluminum	0.394 in	10 mm	2.756 in	70 mm	70 mm	2.756 "
Advanced Thermal Solutions Inc. ATS-H1-24-C1-R0	Blue Anodized	Fins Square	2.362 in	60 mm	8.36 °C/W 100 LFM	ASIC BGA CPU LGA	Push Pin	Top Mount			Aluminum	0.79 in	20 mm					60 mm	2.362 in
Advanced Thermal Solutions Inc. ATS-H1-28-C3-R0	Blue Anodized	Fins Square			10.62 °C/W	ASIC BGA CPU LGA	Push Pin	Top Mount	0.59 "	15 mm	Aluminum			2.756 in	70 mm	70 mm	2.756 "
Advanced Thermal Solutions Inc. ATS-H1-195-C3-R0	Blue Anodized	Fins Square	1.575 in	40 mm	11.12 °C/W 100 LFM	ASIC BGA CPU LGA	Push Pin	Top Mount			Aluminum	0.472 in	12 mm
Advanced Thermal Solutions Inc. ATS-H1-45-C1-R0	Blue Anodized	Fins Square	0.984 in		14.95 °C/W	ASIC BGA CPU LGA	Push Pin	Top Mount			Aluminum	0.79 in	20 mm			25 mm	0.984 in			25 mm
Advanced Thermal Solutions Inc. ATS-H1-95-C3-R0	Blue Anodized	Fins Square	1.575 in	40 mm	7.4 °C/W 100 LFM	ASIC BGA CPU LGA	Push Pin	Top Mount			Aluminum	1.181 in	30 mm
Advanced Thermal Solutions Inc. ATS-H1-38-C1-R0	Blue Anodized	Rectangular Fins			6.4 °C/W	ASIC BGA CPU LGA	Push Pin	Top Mount			Aluminum	0.9 in	22.86 mm			36.83 mm	1.45 in			57.6 mm	2.267 in
Advanced Thermal Solutions Inc. ATS-H1-97-C3-R0	Blue Anodized	Fins Square	1.772 in		20.39 °C/W	ASIC BGA CPU LGA	Push Pin	Top Mount			Aluminum	0.394 in	10 mm			45 mm			1.772 "	45 mm
Advanced Thermal Solutions Inc. ATS-H1-148-C2-R0	Blue Anodized	Fins Square	1.378 in		8.59 °C/W 100 LFM	ASIC BGA CPU LGA	Push Pin	Top Mount	0.59 "	15 mm	Aluminum							35 mm	1.378 in	35 mm
