C2RXG-4006G

Active

CW Industries

DIP CABLE - CDP40G/AE40G/X

Search across all available documentation for this part.

Active

CW Industries

DIP CABLE - CDP40G/AE40G/X

Technical Specifications

Parameters and characteristics for this part

Part	Pitch - Connector	Pitch - Connector	Features	Pitch - Cable	Pitch - Cable	Shielding	Connector Type	Usage	Length [x]	Length [x]	Contact Finish	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Cable Termination	Number of Rows	Color	Length	Length	Length
CW Industries C2RXG-4018G	0.1 in	2.54 mm	Strain Relief	0.05 "	1.27 mm	Unshielded	DIP to Cable	Board In Socket (0.6")	457.2 mm	1.5 ft	Gold	40	10 Áin	0.25 Ám	IDC	2
CW Industries C2RXG-4036M	0.1 in	2.54 mm	Strain Relief	0.05 "	1.27 mm	Unshielded	DIP to Cable	Board In Socket (0.6")	914.4 mm	3 ft	Gold	40	10 Áin	0.25 Ám	IDC	2	Multiple Ribbon
CW Industries C2RXG-4006M	0.1 in	2.54 mm	Strain Relief	0.05 "	1.27 mm	Unshielded	DIP to Cable	Board In Socket (0.6")			Gold	40	10 Áin	0.25 Ám	IDC	2	Multiple Ribbon	152.4 mm	6 "	0.5 '
CW Industries C2RXG-4006G	0.1 in	2.54 mm	Strain Relief	0.05 "	1.27 mm	Unshielded	DIP to Cable	Board In Socket (0.6")			Gold	40	10 Áin	0.25 Ám	IDC	2		152.4 mm	6 "	0.5 '
CW Industries C2RXG-4018M	0.1 in	2.54 mm	Strain Relief	0.05 "	1.27 mm	Unshielded	DIP to Cable	Board In Socket (0.6")	457.2 mm	1.5 ft	Gold	40	10 Áin	0.25 Ám	IDC	2	Multiple Ribbon

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

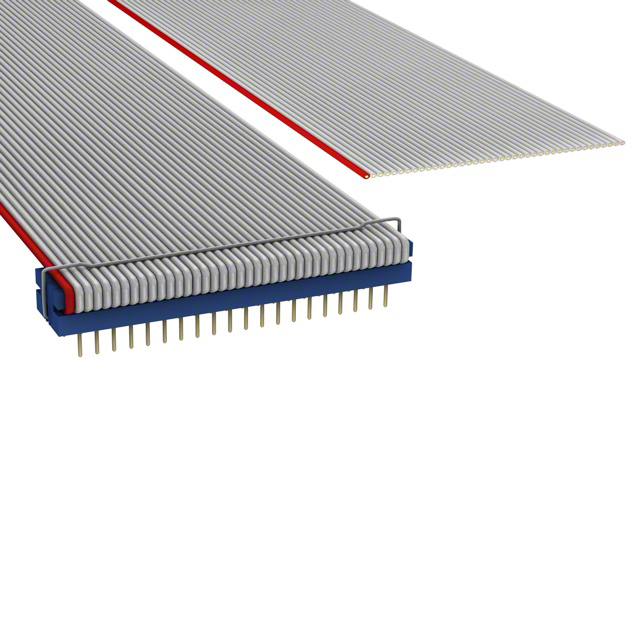

40 Position Cable Assembly Rectangular DIP to Cable 0.500' (152.40mm, 6.00")
