GS15E-4P1J

Obsolete

MEAN WELL USA Inc.

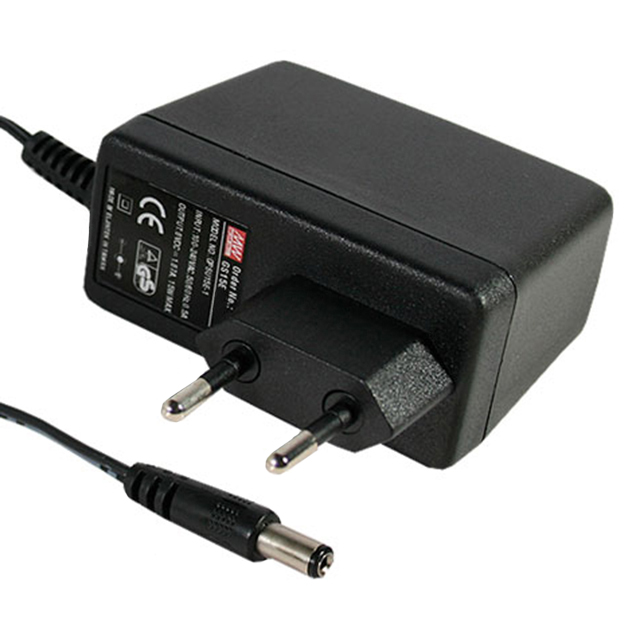

AC/DC WALL MOUNT ADAPTER 15V 15W

Search across all available documentation for this part.

Obsolete

MEAN WELL USA Inc.

AC/DC WALL MOUNT ADAPTER 15V 15W

Technical Specifications

Parameters and characteristics for this part

Specification	GS15E-4P1J

Applications	ITE (Commercial)
Approval Agency	CE, GS
Cord Length	1.2 m
Cord Length	47.2 in
Current - Output (Max) [Max]	1 A
Efficiency	Level VI
Form	Wall Mount (Class II)
Input Connector	CEE 7/16
Input Type	Fixed Blade
No Load Power Consumption [Max]	75 mW
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.1 mm
Output Connector [z]	11 mm
Polarization	Positive Center
Power (Watts)	15 W
Region Utilized	Europe
Size / Dimension [x]	2.8 in
Size / Dimension [x]	71 mm
Size / Dimension [y]	34 mm
Size / Dimension [y]	1.34 in
Size / Dimension [z]	50 mm
Size / Dimension [z]	1.97 "
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	15 VDC

Part	Approval Agency	Region Utilized	Cord Length	Cord Length	Input Type	Current - Output (Max) [Max]	Output Connector	Output Connector [diameter]	Output Connector [z]	Power (Watts)	Voltage - Output	Voltage - Input [Min]	Voltage - Input [Max]	Input Connector	Form	Applications	No Load Power Consumption [Max]	Efficiency	Polarization	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Cord Length
MEAN WELL USA Inc. GS15E-1P1J	CE GS	Europe	1.2 m	47.2 in	Fixed Blade	2.4 A	Barrel Plug	2.1 mm 5.5 mm	11 mm	12 W	5 V	90 VAC	264 VAC	CEE 7/16	Wall Mount (Class II)	ITE (Commercial)	75 mW	Level VI	Positive Center	34 mm	50 mm	2.8 in	1.34 in	1.97 "	71 mm
MEAN WELL USA Inc. GS15E-8P1J	CE GS	Europe		1.8 m	Fixed Blade	310 mA	Barrel Plug	2.1 mm 5.5 mm	11 mm	15 W	48 V	90 VAC	264 VAC	CEE 7/16	Wall Mount (Class II)	ITE (Commercial)	75 mW	Level VI	Positive Center	34 mm	50 mm	2.8 in	1.34 in	1.97 "	71 mm	70.9 in
MEAN WELL USA Inc. GS15E-4P1J	CE GS	Europe	1.2 m	47.2 in	Fixed Blade	1 A	Barrel Plug	2.1 mm 5.5 mm	11 mm	15 W	15 VDC	90 VAC	264 VAC	CEE 7/16	Wall Mount (Class II)	ITE (Commercial)	75 mW	Level VI	Positive Center	34 mm	50 mm	2.8 in	1.34 in	1.97 "	71 mm
MEAN WELL USA Inc. GS15E-2P1J	CE GS	Europe	1.2 m	47.2 in	Fixed Blade	1.66 A	Barrel Plug	2.1 mm 5.5 mm	11 mm	15 W	9 V	90 VAC	264 VAC	CEE 7/16	Wall Mount (Class II)	ITE (Commercial)	75 mW	Level VI	Positive Center	34 mm	50 mm	2.8 in	1.34 in	1.97 "	71 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

15V 15 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
