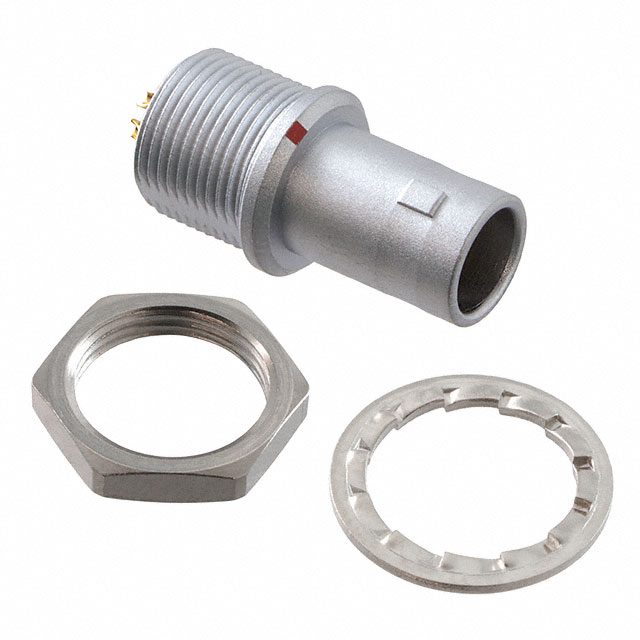

FAG.0B.305.CLA

Active

LEMO

CONN PLUG MALE 5P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FAG.0B.305.CLA

Active

LEMO

CONN PLUG MALE 5P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FAG.0B.305.CLA

Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1 µm
Contact Finish Thickness - Mating	39.4 µin
Contact Material	Brass
Current Rating (Amps)	6.5 A
Fastening Type	Push-Pull
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Orientation	G
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	305
Shielding	Shielded

FAG.0B Series

Part	Orientation	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Current Rating (Amps)	Insert Material	Connector Type	Number of Positions	Contact Material	Shell Size - Insert	Color	Shell Material	Mounting Feature	Ingress Protection	Material Flammability Rating	Shielding	Shell Finish	Primary Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Termination
LEMO FAG.0B.306.CLA	G	Push-Pull	-55 °C	250 °C	Gold	2.5 A	Polyetheretherketone (PEEK)	Male Pins Plug	6	Brass	306	Silver	Brass	Bulkhead - Rear Side Nut	IP50	UL94 V-0	Shielded	Chrome	Metal	1 µm	39.4 µin
LEMO FAG.0B.302.CLA	G	Push-Pull	-55 °C	250 °C	Gold	10 A	Polyetheretherketone (PEEK)	Male Pins Plug	2	Brass	302	Silver	Brass	Bulkhead - Rear Side Nut	IP50	UL94 V-0	Shielded	Chrome	Metal	1 µm	39.4 µin
LEMO FAG.0B.309.CLD	G	Push-Pull	-55 °C	250 °C	Gold	2 A	Polyetheretherketone (PEEK)	Male Pins Plug	9	Brass	309	Silver	Brass	Bulkhead - Rear Side Nut	IP50	UL94 V-0	Shielded	Chrome	Metal	1 µm	39.4 µin	Panel Mount Through Hole	Solder
LEMO FAG.0B.304.CYC	G	Push-Pull	-55 °C	250 °C	Gold	7 A	Polyetheretherketone (PEEK)	Male Pins Plug	4	Brass	304	Silver	Brass	Bulkhead - Rear Side Nut	IP50	UL94 V-0	Shielded	Chrome	Metal	1 µm	39.4 µin		Crimp
LEMO FAG.0B.307.CLA	G	Push-Pull	-55 °C	250 °C	Gold	2.5 A	Polyetheretherketone (PEEK)	Male Pins Plug	7	Brass	307	Silver	Brass	Bulkhead - Rear Side Nut	IP50	UL94 V-0	Shielded	Chrome	Metal	1 µm	39.4 µin
LEMO FAG.0B.309.KLA	G	Push-Pull	-55 °C	250 °C	Gold	2 A	Polyetheretherketone (PEEK)	Male Pins Plug	9	Brass	309	Black	Brass	Bulkhead - Rear Side Nut	IP50	UL94 V-0	Shielded		Metal	1 µm	39.4 µin
LEMO FAG.0B.309.CLA	G	Push-Pull	-55 °C	250 °C	Gold	2 A	Polyetheretherketone (PEEK)	Male Pins Plug	9	Brass	309	Silver	Brass	Bulkhead - Rear Side Nut	IP50	UL94 V-0	Shielded	Chrome	Metal	1 µm	39.4 µin
LEMO FAG.0B.305.CLA	G	Push-Pull	-55 °C	250 °C	Gold	6.5 A	Polyetheretherketone (PEEK)	Male Pins Plug		Brass	305	Silver	Brass	Bulkhead - Rear Side Nut	IP50	UL94 V-0	Shielded	Chrome	Metal	1 µm	39.4 µin
LEMO FAG.0B.306.CLD	G	Push-Pull	-55 °C	250 °C	Gold	2.5 A	Polyetheretherketone (PEEK)	Male Pins Plug	6	Brass	306	Silver	Brass	Bulkhead - Rear Side Nut	IP50	UL94 V-0	Shielded	Chrome	Metal	1 µm	39.4 µin	Panel Mount Through Hole	Solder
LEMO FAG.0B.303.CYC	G	Push-Pull	-55 °C	250 °C	Gold	8 A	Polyetheretherketone (PEEK)	Male Pins Plug		Brass	303	Silver	Brass	Bulkhead - Rear Side Nut	IP50	UL94 V-0	Shielded	Chrome	Metal	1 µm	39.4 µin		Crimp

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 27.49
		10	$ 24.07
		25	$ 23.03
		50	$ 22.29
		100	$ 21.54
		250	$ 20.35
		500	$ 19.76

Description

General part information

FAG.0B Series

5 Position Circular Connector Plug, Male Pins Solder Cup
