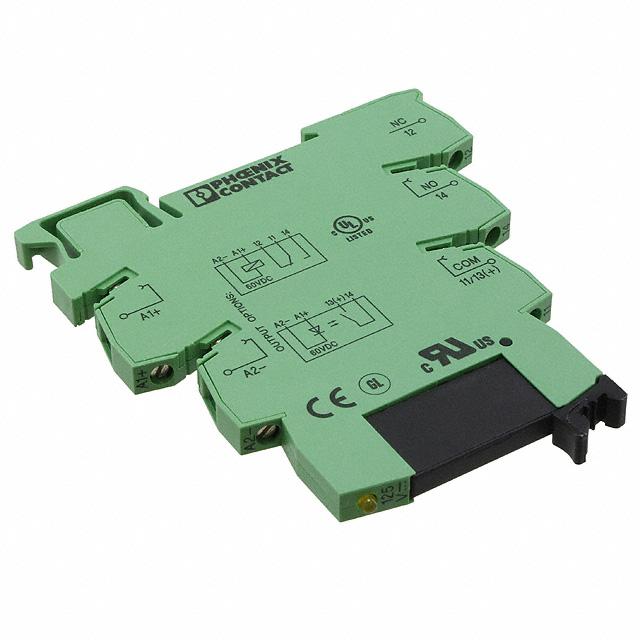

2980050
ActivePhoenix Contact
RELAY: SOLID STATE; SPST-NO; UCOIL: 125VDC; 3A; 3A/33VDC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2980050 |
|---|---|
| Approval Agency | EN, IEC |
| Load Current | 3 A |
| Mounting Type | DIN Rail |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Output Type | DC |
| Package / Case | Module |
| Termination Style | Screw Terminal |
| Voltage - Input | 125 V |
| Voltage - Load [Max] | 33 V |
| Voltage - Load [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
298005 Series
Solid State SPST-NO (1 Form A) Module
