1942/3 BK003
ActiveALPHA WIRE

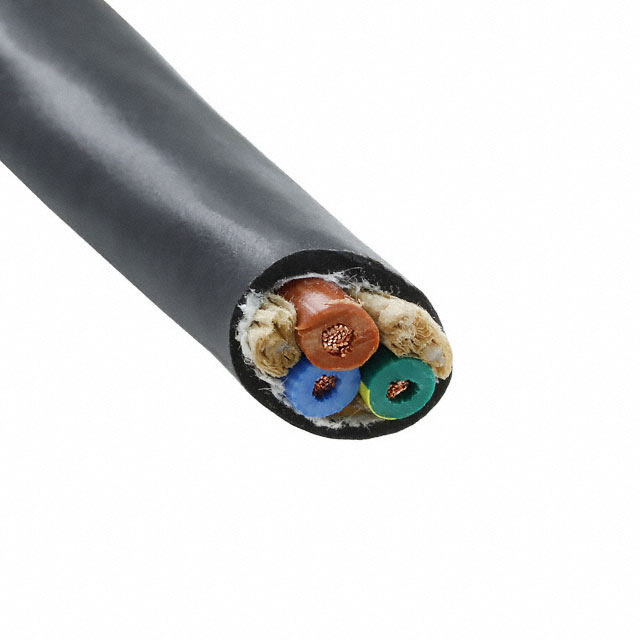

MULTI-CONDUCTOR CABLE 3CONDUCTORS 16AWG 8.9MM 300V BLACK 76.2M SPOOL
Deep-Dive with AI
Search across all available documentation for this part.
1942/3 BK003
ActiveALPHA WIRE
MULTI-CONDUCTOR CABLE 3CONDUCTORS 16AWG 8.9MM 300V BLACK 76.2M SPOOL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1942/3 BK003 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Bare |
| Conductor Strand [custom] | 34 AWG |
| Conductor Strand [custom] | 65 |
| Features | Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 0.336 " |
| Jacket (Insulation) Diameter [diameter] | 8.53 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Black |
| Length | 3000 " |
| Length | 76.2 m |
| Length [x] | 30.5 m |
| Length [x] | 100 ft |
| Number of Conductors | 3 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -30 ░C |
| Voltage | 300 V |
| Wire Gauge | 16 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 253.82 | |
| 1 | $ 845.88 | |||
| 2 | $ 241.41 | |||
| 3 | $ 234.40 | |||
| 5 | $ 225.80 | |||
| 7 | $ 220.28 | |||
| 10 | $ 214.54 | |||
| 10 | $ 775.88 | |||
| 25 | $ 768.20 | |||
| 25 | $ 200.35 | |||
| 50 | $ 190.11 | |||
| 100 | $ 189.38 | |||
Description
General part information
1942/3 Series
3 Conductor Multi-Conductor Cable Black 16 AWG 100.0' (30.5m)
