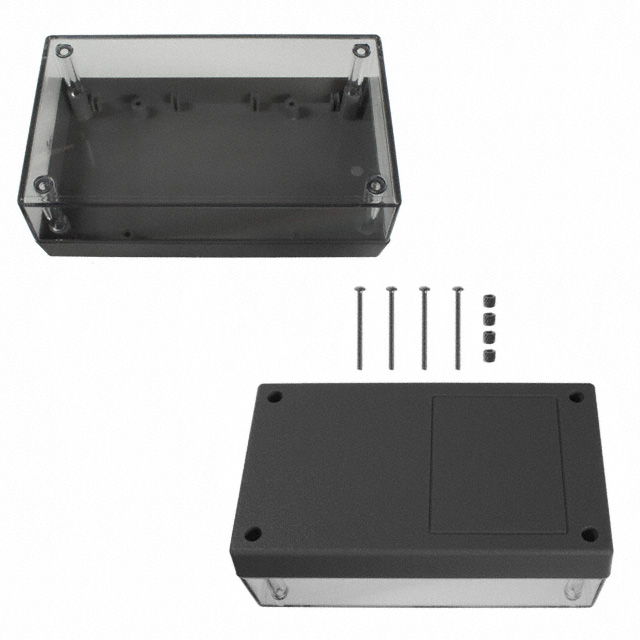

152RC,GY

Active

Serpac

BOX PLASTIC 5.62"L X 3.25"W

Deep-Dive with AI

Search across all available documentation for this part.

152RC,GY

Active

Serpac

BOX PLASTIC 5.62"L X 3.25"W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	152RC,GY

Area (L x W)	18.3 in²
Area (L x W)	118 cm²
Color	Gray, Clear Cover/Door
Container Type	Box
Design	Split Sides, Hand Held
Features	Front Access, PCB Supports
Height [z]	50.8 mm
Height [z]	2 in
Material	Plastic, Polycarbonate
Ratings	IP40, NEMA 1
Size / Dimension [x]	142.75 mm
Size / Dimension [x]	5.62 in
Size / Dimension [y]	3.25 "
Size / Dimension [y]	82.55 mm
Thickness	2.54 mm
Thickness	0.1 in
Weight	119.29 g
Weight	0.263 lb

152R Series

Part	Thickness	Thickness	Color	Container Type	Design	Weight	Weight	Material Flammability Rating	Area (L x W)	Area (L x W)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Material	Ratings	Height [z]	Height [z]	Features
Serpac 152RI,AL	2.54 mm	0.1 in	Almond	Box	Hand Held Split Sides	119.29 g	0.263 lb	UL94 HB	18.3 in²	118 cm²	3.25 "	142.75 mm	82.55 mm	5.62 in	Plastic ABS	IP40 NEMA 1	50.8 mm	2 in	Front Access PCB Supports
Serpac 152R,AL	2.54 mm	0.1 in	Almond	Box	Hand Held Split Sides	119.29 g	0.263 lb	UL94 HB	18.3 in²	118 cm²	3.25 "	142.75 mm	82.55 mm	5.62 in	Plastic ABS	IP40 NEMA 1	50.8 mm	2 in	Front Access PCB Supports
Serpac 152RC,BK	2.54 mm	0.1 in	Black Clear Cover/Door	Box	Hand Held Split Sides	119.29 g	0.263 lb		18.3 in²	118 cm²	3.25 "	142.75 mm	82.55 mm	5.62 in	Plastic Polycarbonate	IP40 NEMA 1	50.8 mm	2 in	Front Access PCB Supports
Serpac 152R,BK	2.54 mm	0.1 in	Black	Box	Hand Held Split Sides	119.29 g	0.263 lb	UL94 HB	18.3 in²	118 cm²	3.25 "	142.75 mm	82.55 mm	5.62 in	Plastic ABS	IP40 NEMA 1	50.8 mm	2 in	Front Access PCB Supports
Serpac 152RC,GY	2.54 mm	0.1 in	Clear Cover/Door Gray	Box	Hand Held Split Sides	119.29 g	0.263 lb		18.3 in²	118 cm²	3.25 "	142.75 mm	82.55 mm	5.62 in	Plastic Polycarbonate	IP40 NEMA 1	50.8 mm	2 in	Front Access PCB Supports
Serpac 152RI,BK	2.54 mm	0.1 in	Black	Box	Hand Held Split Sides	119.29 g	0.263 lb	UL94 HB	18.3 in²	118 cm²	3.25 "	142.75 mm	82.55 mm	5.62 in	Plastic ABS	IP40 NEMA 1	50.8 mm	2 in	Front Access PCB Supports
Serpac 152RC,AL	2.54 mm	0.1 in		Box	Hand Held Split Sides	119.29 g	0.263 lb		18.3 in²	118 cm²	3.25 "	142.75 mm	82.55 mm	5.62 in	Plastic Polycarbonate	IP40 NEMA 1	50.8 mm	2 in	Front Access PCB Supports

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 20.11

Description

General part information

152R Series

Box Plastic, Polycarbonate Gray, Clear Cover/Door Hand Held, Split Sides 5.620" L x 3.250" W (142.75mm x 82.55mm) X 2.000" (50.80mm)

Documents

Technical documentation and resources

No documents available
