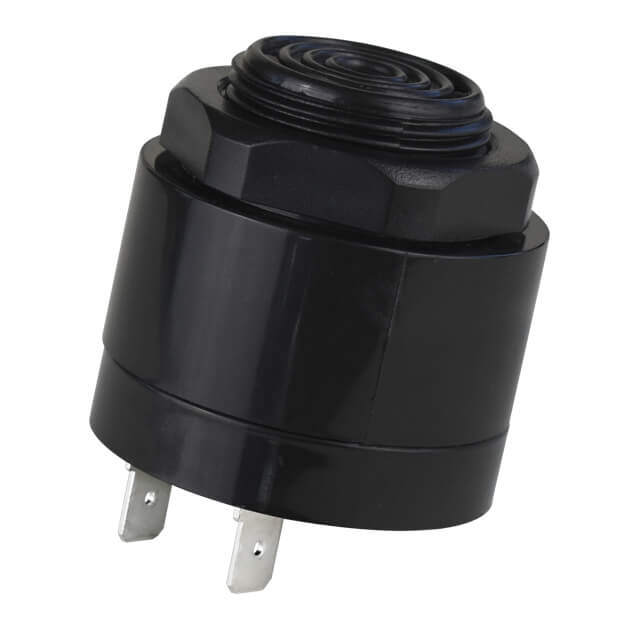

CPI-4242-85T

Active

CUI Devices

BUZZER PIEZO 220V42.5MM PNL MNT

Search across all available documentation for this part.

Active

CUI Devices

BUZZER PIEZO 220V42.5MM PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	CPI-4242-85T

Current - Supply	18 mA
Driver Circuitry	Internally Driven, Indicator
Frequency	2.8 kHz
Height - Seated (Max) [Max] [z]	42.5 mm
Height - Seated (Max) [Max] [z]	1.673 in
Operating Mode	Single Tone
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Port Location	Top
Size / Dimension [diameter]	42.5 mm
Size / Dimension [diameter]	1.673 in
Sound Pressure Level (SPL)	85 dB
Technology	Piezo
Termination	Quick Connect Tab
Termination	6.5 mm
Termination	0.256 "
Voltage - Rated	220 V
Voltage Range [Max]	250 V
Voltage Range [Min]	60 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Range [Max]	Voltage Range [Min]	Termination	Termination	Termination	Voltage - Rated	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Sound Pressure Level (SPL)	Operating Mode	Driver Circuitry	Technology	Current - Supply	Frequency	Port Location	Size / Dimension [diameter]	Size / Dimension [diameter]
CUI Devices CPI-4242-85T	-30 ░C	85 °C	250 V	60 V	Quick Connect Tab	6.5 mm	0.256 "	220 V	42.5 mm	1.673 in	85 dB	Single Tone	Indicator Internally Driven	Piezo	18 mA	2.8 kHz	Top	42.5 mm	1.673 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Buzzers Indicator, Internally Driven Piezo 220 V 18mA 2.8kHz 85dB @ 220V, 30cm Panel Mount Quick Connect Tab - 0.256" (6.50mm)
