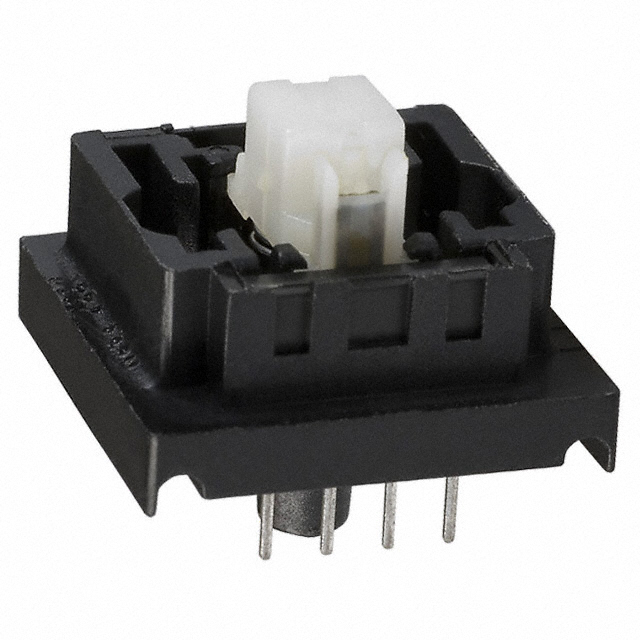

3.13001.1101350
ObsoleteRAFI USA
SWITCH PUSH HALL EFF 16MA 5.25V
Deep-Dive with AI
Search across all available documentation for this part.
3.13001.1101350
ObsoleteRAFI USA
SWITCH PUSH HALL EFF 16MA 5.25V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3.13001.1101350 |
|---|---|
| Actuator Type | Plunger for Cap |
| Circuit | Single |
| Current - Output (Max) [Max] | 16 mA |
| Ingress Protection | IP40 |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Supply Current [Max] | 5 mA |
| Supply Voltage [Max] | 5.25 V |
| Supply Voltage [Min] | 4.75 V |
| Switch Function | Off-Mom |
| Termination Style | PC Pin |
| Voltage - Output (Max) [Max] | 5.25 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
3.13.001 Series
Pushbutton Hall Effect Switch 16mA 5.25 V
Documents
Technical documentation and resources
No documents available
