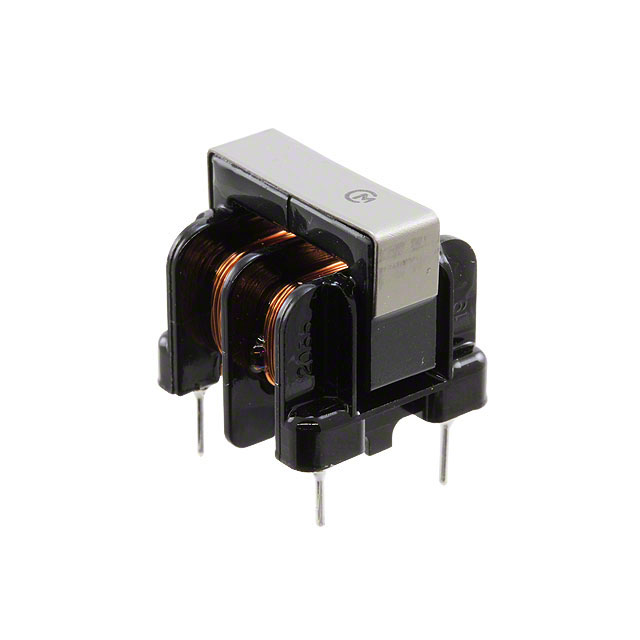

PLA10AS2030R5R2B

Obsolete

Murata Power Solutions Inc.

COMMON MODE FILTERS ROHS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PLA10AS2030R5R2B

Current Rating (Max) [Max]	500 mA
DC Resistance (DCR) (Max) [Max]	1.8 Ohm
Filter Type	Power Line
Height (Max) [Max]	0.689 in
Height (Max) [Max]	17.5 mm
Mounting Type	Through Hole
Number of Lines	2
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Package / Case	4 Lead
Package / Case	Vertical
Size / Dimension [x]	0.709 in
Size / Dimension [x]	18 mm
Size / Dimension [y]	0.63 in
Size / Dimension [y]	16 mm
Voltage Rating - DC	250 V

PLA10AS Series

Part	Number of Lines	Voltage Rating - DC	Filter Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Current Rating (Max) [Max]	Height (Max) [Max]	Height (Max) [Max]	Package / Case	Package / Case	DC Resistance (DCR) (Max) [Max]
Murata Power Solutions Inc. PLA10AS5521R0R2B	2	250 V	Power Line	Through Hole	-25 °C	60 °C	0.63 in	16 mm	0.709 in	18 mm	1 A	0.689 in	17.5 mm	4 Lead	Vertical
Murata Power Solutions Inc. PLA10AS3621R0D2B	2	250 V	Power Line	Through Hole	-25 °C	60 °C	0.63 in	16 mm	0.709 in	18 mm	1 A	0.689 in	17.5 mm	4 Lead	Vertical
Murata Power Solutions Inc. PLA10AS2221R5R2B	2	250 V	Power Line	Through Hole	-25 °C	60 °C	0.63 in	16 mm	0.709 in	18 mm	1.5 A	0.689 in	17.5 mm	4 Lead	Vertical
Murata Power Solutions Inc. PLA10AS4330R3R2B	2	250 V	Power Line	Through Hole	-25 °C	60 °C	0.63 in	16 mm	0.709 in	18 mm	300 mA	0.689 in	17.5 mm	4 Lead	Vertical
Murata Power Solutions Inc. PLA10AS2030R5R2B	2	250 V	Power Line	Through Hole	-25 °C	60 °C	0.63 in	16 mm	0.709 in	18 mm	500 mA	0.689 in	17.5 mm	4 Lead	Vertical	1.8 Ohm
Murata Power Solutions Inc. PLA10AS7420R8R2B	2	250 V	Power Line	Through Hole	-25 °C	60 °C	0.63 in	16 mm	0.709 in	18 mm	800 mA	0.689 in	17.5 mm	4 Lead	Vertical	640 mOhm
Murata Power Solutions Inc. PLA10AS1522R0R2B	2	250 V	Power Line	Through Hole	-25 °C	60 °C	0.63 in	16 mm	0.709 in	18 mm	2 A	0.689 in	17.5 mm	4 Lead	Vertical
Murata Power Solutions Inc. PLA10AS3521R2R2B	2	250 V	Power Line	Through Hole	-25 °C	60 °C	0.63 in	16 mm	0.709 in	18 mm	1.2 A	0.689 in	17.5 mm	4 Lead	Vertical	320 mOhm
Murata Power Solutions Inc. PLA10AS7720R7D2B	2	250 V	Power Line	Through Hole	-25 °C	60 °C	0.63 in	16 mm	0.709 in	18 mm	700 mA	0.689 in	17.5 mm	4 Lead	Vertical
Murata Power Solutions Inc. PLA10AS3030R4R2B	2	250 V	Power Line	Through Hole	-25 °C	60 °C	0.63 in	16 mm	0.709 in	18 mm	400 mA	0.689 in	17.5 mm	4 Lead	Vertical

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

LCSC	N/A	1	$ 0.00

Description

General part information

PLA10AS Series

2 Line Common Mode Choke Through Hole 500mA DCR 1.8Ohm
