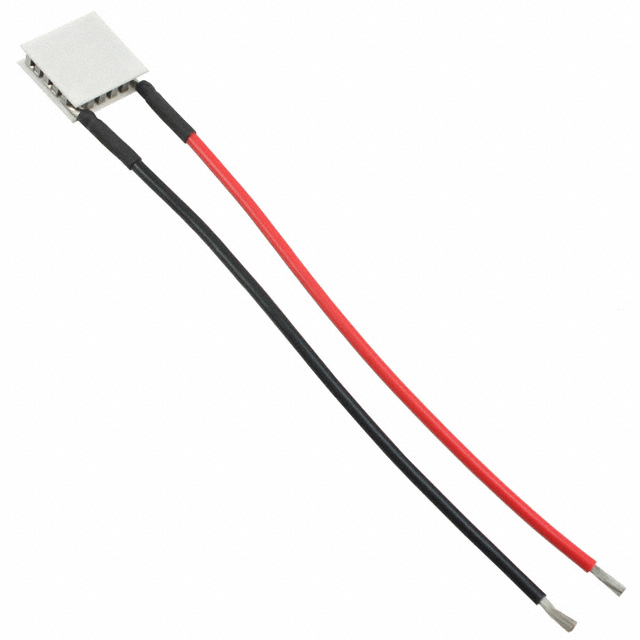

44530-501
ActiveLaird Thermal Systems, Inc.
PELTIER CP14,17,10,L,W4.5
Deep-Dive with AI
Search across all available documentation for this part.
44530-501
ActiveLaird Thermal Systems, Inc.
PELTIER CP14,17,10,L,W4.5
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 44530-501 |
|---|---|
| Current - Max [Max] | 3.9 A |
| Delta Tmax @ Th | 68 °C |
| Features | Lead Wires, Non-Sealed |
| Height [z] | 4.7 mm |
| Number of Stages | 1 |
| Operating Temperature | 80 °C |
| Qmax @ Th | 4.5 W |
| Resistance | 460 mOhms |
| Size / Dimension [x] | 14.86 mm |
| Size / Dimension [y] | 14.86 mm |
| Voltage - Max [Max] | 1.9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 23.01 | |
| 5 | $ 21.59 | |||
| 20 | $ 21.07 | |||
| 40 | $ 20.30 | |||
| 60 | $ 19.78 | |||
| 100 | $ 19.26 | |||
Description
General part information
44530 Series
Peltier Module 4.5W @ 25°C 3.9 A 80°C
Documents
Technical documentation and resources
