Q8P5BXXHG24E
ActiveAPEM

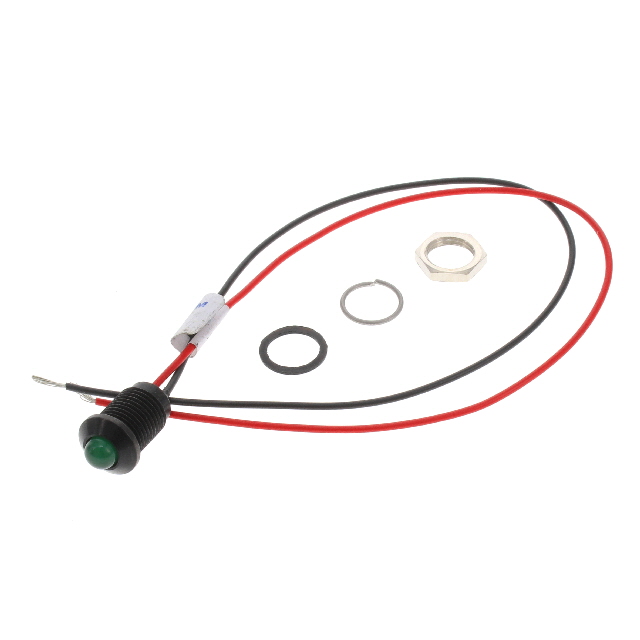

INDICATOR 8MM PM PROMINENT GREEN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | Q8P5BXXHG24E |
|---|---|
| Ingress Protection | IP67 |
| Lamp Color | Green |
| Lens Color | Green |
| Lens Size [diameter] | 5 mm Dia |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 1900 mcd |
| Panel Cutout Dimensions | 8 mm |
| Panel Cutout Dimensions | 0.315 in |
| Panel Cutout Shape | Round |
| Ratings | DC |
| Termination Style | Wire Leads - 7.87" (200.00mm) |
| Type | LED |
| Viewing Angle | 100 ° |
| Voltage | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 32.44 | |
| 10 | $ 25.72 | |||
| 80 | $ 22.49 | |||
| 440 | $ 21.61 | |||
Description
General part information
Q8P5BXXHG Series
LED Panel Indicator Green Diffused 100° 24V 20mA Wire Leads - 7.87" (200.00mm)
