345-144-544-278
ActiveEDAC Inc.

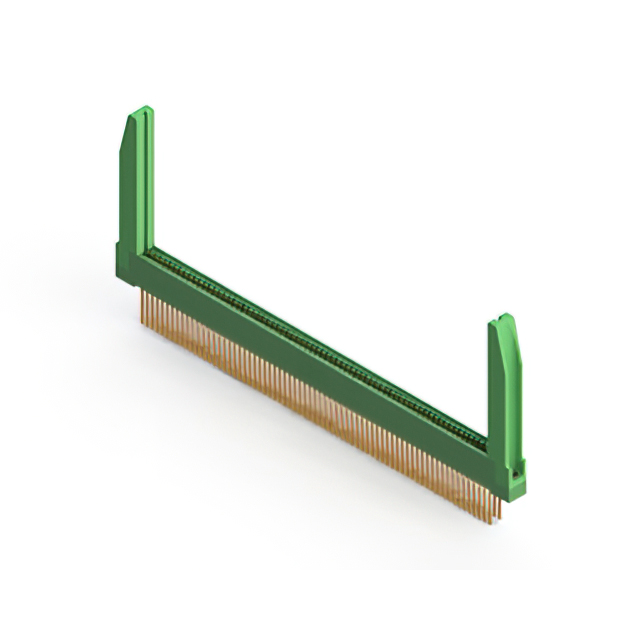

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 144 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
345-144-544-278
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 144 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 345-144-544-278 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Guides |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 144 |
| Number of Positions/Bay/Row [custom] | 72 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Wire Wrap |
| Termination Rows | 2 |
345-144 Series
...
| Part | Pitch [x] | Pitch [x] | Termination | Material - Insulation | Number of Rows | Color | Termination Rows | Number of Positions/Bay/Row [custom] | Card Type | Gender | Flange Feature | Contact Material | Features | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Read Out | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions | Contact Type | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 2.54 mm | 0.1 in | Solder Eyelet(s) | Polyester Thermoplastic | 2 | Green | 2 | 72 | Non Specified - Dual Edge | Female | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | Card Guides | Gold | -40 °C | 105 ░C | Dual | 10 Áin | 0.25 Ám | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 144 | Cantilever | ||
EDAC Inc. | 2.54 mm | 0.1 in | Solder Eyelet(s) | Polyester Thermoplastic | 2 | Green | 2 | 72 | Non Specified - Dual Edge | Female | Side Mount Opening Unthreaded | Copper Alloy | Gold | -40 °C | 105 ░C | Dual | 10 Áin | 0.25 Ám | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 144 | Cantilever | 3.25 mm | 0.128 in | |
EDAC Inc. | 2.54 mm | 0.1 in | Solder Eyelet(s) | Polyester Thermoplastic | 2 | Green | 2 | 72 | Non Specified - Dual Edge | Female | Copper Alloy | Card Extender | Gold | -40 °C | 105 ░C | Dual | 10 Áin | 0.25 Ám | Board Edge Straddle Mount | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 144 | Cantilever | 3.25 mm | 0.128 in | |
EDAC Inc. | 2.54 mm | 0.1 in | Solder | Polyester Thermoplastic | 2 | Green | 2 | 72 | Non Specified - Dual Edge | Female | Side Mount Opening Unthreaded | Copper Alloy | Gold | -40 °C | 105 ░C | Dual | 10 Áin | 0.25 Ám | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 144 | Cantilever | 3.25 mm | 0.128 in | |
EDAC Inc. | 2.54 mm | 0.1 in | Wire Wrap | Polyester Thermoplastic | 2 | Green | 2 | 72 | Non Specified - Dual Edge | Female | M3 Threaded Insert Top Mount Opening | Copper Alloy | Gold | -40 °C | 105 ░C | Dual | 10 Áin | 0.25 Ám | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 144 | Cantilever | |||
EDAC Inc. | 2.54 mm | 0.1 in | Solder | Polyester Thermoplastic | 2 | Green | 2 | 72 | Non Specified - Dual Edge | Female | 4-40 Threaded Insert Top Mount Opening | Copper Alloy | Card Guides | Gold | -40 °C | 105 ░C | Dual | 10 Áin | 0.25 Ám | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 144 | Cantilever | ||
EDAC Inc. | 2.54 mm | 0.1 in | Solder Eyelet(s) | Polyester Thermoplastic | 2 | Green | 2 | 72 | Non Specified - Dual Edge | Female | 4-40 Threaded Insert Top Mount Opening | Copper Alloy | Card Guides | Gold | -40 °C | 105 ░C | Dual | 10 Áin | 0.25 Ám | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 144 | Cantilever | ||
EDAC Inc. | 2.54 mm | 0.1 in | Wire Wrap | Polyester Thermoplastic | 2 | Green | 2 | 72 | Non Specified - Dual Edge | Female | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | Gold | -40 °C | 105 ░C | Dual | 10 Áin | 0.25 Ám | Through Hole Right Angle | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 144 | Cantilever | |||
EDAC Inc. | 2.54 mm | 0.1 in | Wire Wrap | Polyester Thermoplastic | 2 | Green | 2 | 72 | Non Specified - Dual Edge | Female | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | Card Guides | Gold | -40 °C | 105 ░C | Dual | 10 Áin | 0.25 Ám | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 144 | Cantilever | ||
EDAC Inc. | 2.54 mm | 0.1 in | Solder | Polyester Thermoplastic | 2 | Green | 2 | 72 | Non Specified - Dual Edge | Female | Side Mount Opening Unthreaded | Copper Alloy | Card Extender | Gold | -40 °C | 105 ░C | Dual | 10 Áin | 0.25 Ám | Board Edge Straddle Mount | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 144 | Cantilever | 3.25 mm | 0.128 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
345-144 Series
144 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
