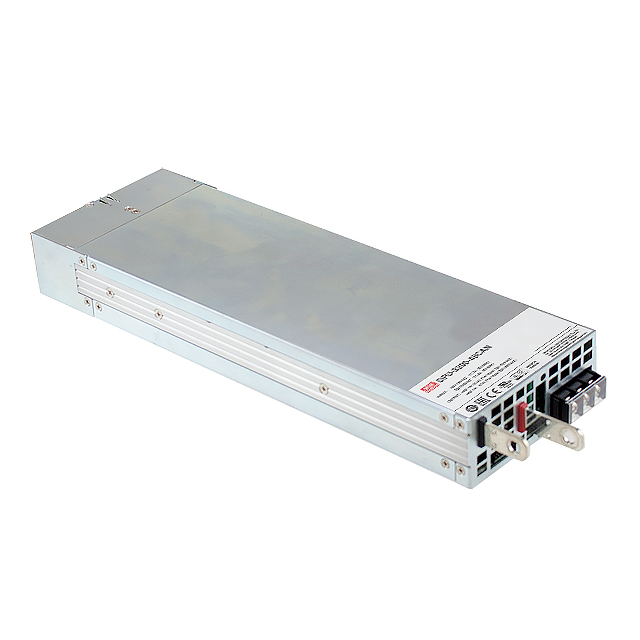

DPU-3200-48
ActiveMEAN WELL USA Inc.
AC/DC CONVERTER 48V 3216W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DPU-3200-48
ActiveMEAN WELL USA Inc.
AC/DC CONVERTER 48V 3216W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DPU-3200-48 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | TUV, cURus, EAC, CE, CB |
| Current - Output 1 | 67 A |
| Efficiency | 94.5 % |
| Features | Universal Input, Remote Sense, Remote On/Off, Adjustable Output, PFC |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 °C |
| Power (Watts) | 3.216 kW |
| Size / Dimension [x] | 12.8 ", 325.1 mm |
| Size / Dimension [y] | 4.21 ", 106.9 mm |
| Size / Dimension [z] | 1.61 ", 40.9 mm |
| Type | Enclosed |
| Voltage - Input [Max] | 370 VDC, 264 VAC |
| Voltage - Input [Min] | 127 VDC, 90 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 714.40 | |
| 5 | $ 680.60 | |||
| 10 | $ 650.50 | |||
Description
General part information
DPU-3200 Series
Enclosed AC DC Converters 1 Output 48V 90 ~ 264 VAC, 127 ~ 370 VDC Input
