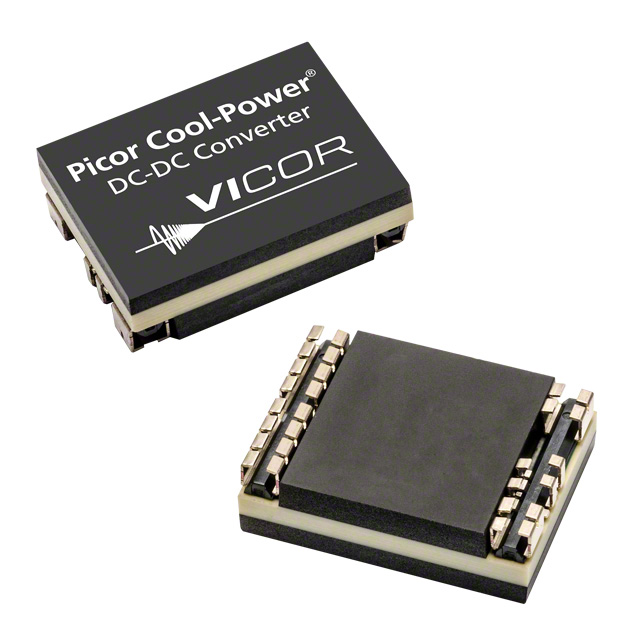

PI3101-00-HVIZ
ObsoleteVicor Corporation
SMD-8P,22X16.5MM DC-DC POWER MODULES ROHS
Deep-Dive with AI
Search across all available documentation for this part.
PI3101-00-HVIZ
ObsoleteVicor Corporation
SMD-8P,22X16.5MM DC-DC POWER MODULES ROHS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PI3101-00-HVIZ |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 18 A |
| Efficiency | 86.5 % |
| Features | OTP, Remote On/Off, OVP, UVLO, OCP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 8-SMD Module |
| Power (Watts) | 60 W |
| Size / Dimension [x] | 22 mm |
| Size / Dimension [x] | 0.87 in |
| Size / Dimension [y] | 0.65 in |
| Size / Dimension [y] | 16.5 mm |
| Size / Dimension [z] | 6.7 mm |
| Size / Dimension [z] | 0.26 " |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Isolation | 2250 VDC |
| Voltage - Output 1 | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| LCSC | Piece | 1 | $ 178.09 | |
| 200 | $ 71.06 | |||
| 500 | $ 68.69 | |||
| 1000 | $ 67.51 | |||
Description
General part information
PI3101 Series
Isolated Module DC DC Converter 1 Output 3.3V 18A 36V - 75V Input
