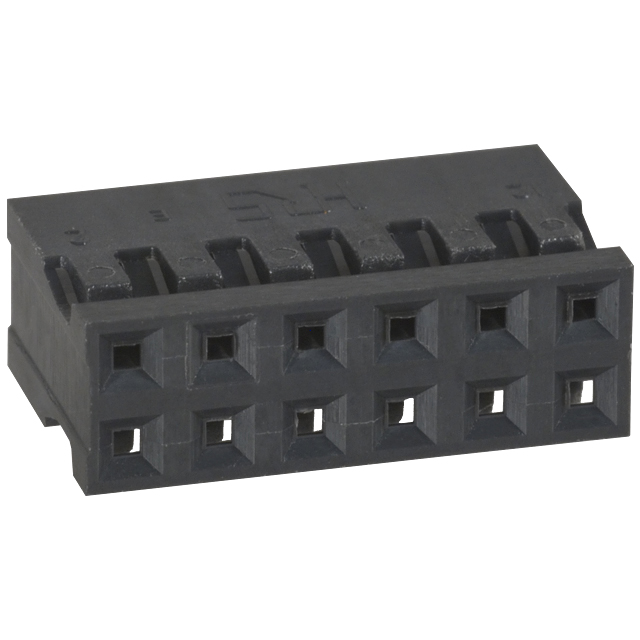

A3B-12D-2C

Active

Hirose Electric USA, Inc.

2.0MM PITCH DOUBLE ROW MINIATURE CONNECTORS

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

2.0MM PITCH DOUBLE ROW MINIATURE CONNECTORS

Technical Specifications

Parameters and characteristics for this part

Specification	A3B-12D-2C

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	12
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Row Spacing	2 mm
Row Spacing	0.079 in

Part	Contact Type	Color	Note	Connector Type	Pitch [x]	Pitch [x]	Contact Termination	Insulation Material	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Row Spacing	Row Spacing	Mounting Type	Number of Rows
Hirose Electric USA, Inc. A3B-12D-2C	Female Socket	Black	Contacts Not Included	Receptacle	0.079 in	2 mm	Crimp	Polybutylene Terephthalate (PBT)	12	85 °C	-55 °C	2 mm	0.079 in	Free Hanging (In-Line)	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Rectangular Connectors - Housings Receptacle Black 0.079" (2.00mm)
