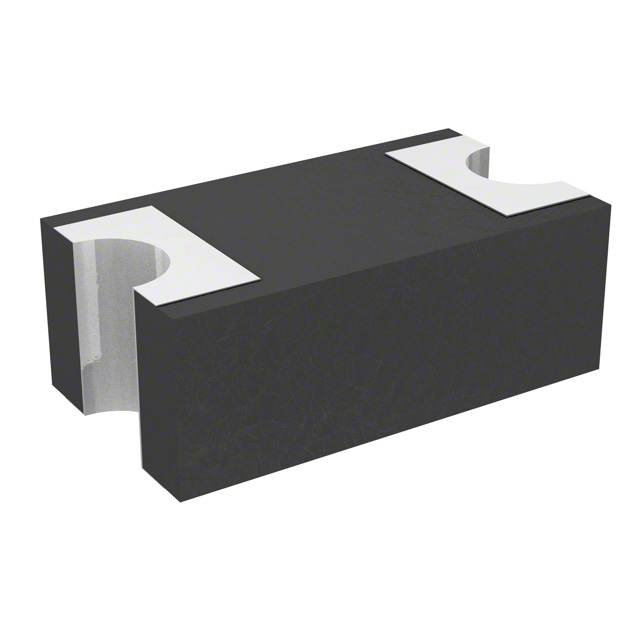

SD0603S040S0R2

Active

Kyocera AVX

DIODE SCHOTTKY 40V 200MA 0603

Search across all available documentation for this part.

Active

Kyocera AVX

DIODE SCHOTTKY 40V 200MA 0603

Technical Specifications

Parameters and characteristics for this part

Specification	SD0603S040S0R2

Current - Average Rectified (Io)	200 mA
Current - Reverse Leakage @ Vr	1 µA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	125 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	0603 (1608 Metric)
Speed	Any Speed
Speed	200 mA
Supplier Device Package	1608 Metric
Supplier Device Package	0603
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	40 V
Voltage - Forward (Vf) (Max) @ If	450 mV

Part	Supplier Device Package	Package / Case	Voltage - Forward (Vf) (Max) @ If	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Current - Average Rectified (Io)	Speed	Current - Reverse Leakage @ Vr	Mounting Type	Technology	Voltage - DC Reverse (Vr) (Max) [Max]	Supplier Device Package	Speed
Kyocera AVX SD0603S040S0R3	1206	1206 (3216 Metric)	500 mV	-55 °C	125 °C	300 mA	200 mA 500 ns	50 µA	Surface Mount	Schottky	40 V
Kyocera AVX SD0603S040S0R2	0603	0603 (1608 Metric)	450 mV	-55 °C	125 °C	200 mA	200 mA	1 µA	Surface Mount	Schottky	40 V	1608 Metric	Any Speed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 40 V 200mA Surface Mount 0603 (1608 Metric)
