012528PW100

Active

Essentra Access Solutions

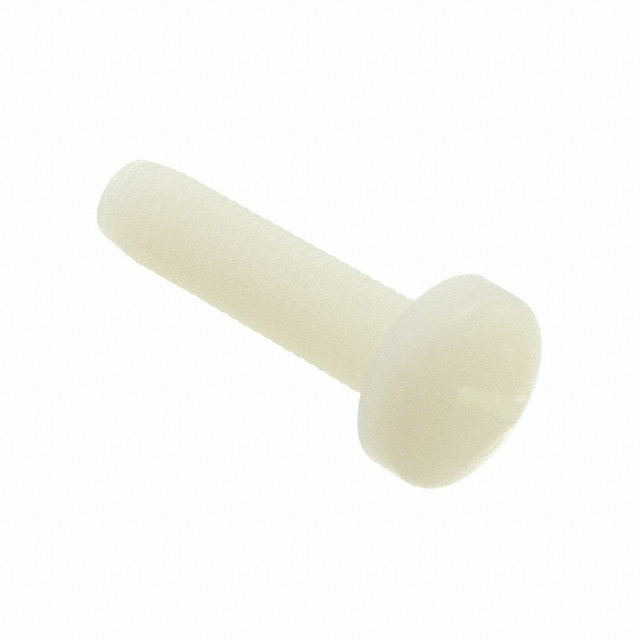

PAN PHILLIPS SCREW 1/4-28 THREAD

Search across all available documentation for this part.

Active

Essentra Access Solutions

PAN PHILLIPS SCREW 1/4-28 THREAD

Technical Specifications

Parameters and characteristics for this part

Part	Length - Below Head [x]	Length - Below Head [x]	Drive Type	Screw Head Type	Material	Head Height	Head Height	Head Diameter [diameter]	Head Diameter [diameter]	Thread Size	Type	Length - Overall [x]	Length - Overall [x]	Length - Below Head	Length - Below Head	Length - Below Head	Length - Below Head	Length - Below Head [custom]	Length - Below Head [custom]
Essentra Access Solutions 012528PW018	4.76 mm	0.188 in	Phillips	Pan Head	Nylon	0.198 "	5.03 mm	12.26 mm	0.483 in	1/4"-28	Machine Screw
Essentra Access Solutions 012528PW050			Phillips	Pan Head	Nylon	0.198 "	5.03 mm			1/4"-28	Machine Screw	0.698 in	17.73 mm	12.7 mm	1/2	0.5 in
Essentra Access Solutions 012528PW075			Phillips	Pan Head	Nylon	0.198 "	5.03 mm			1/4"-28	Machine Screw	0.948 in	24.08 mm	19.05 mm		0.75 "	0.75 "
Essentra Access Solutions 012528PW062			Phillips	Pan Head	Nylon	0.198 "	5.03 mm	12.26 mm	0.483 in	1/4"-28	Machine Screw	0.823 in	20.9 mm	15.88 mm		0.625 in	0.625 in
Essentra Access Solutions 012528PW100			Phillips	Pan Head	Nylon	0.198 "	5.03 mm			1/4"-28	Machine Screw	1.198 in	30.43 mm	25.4 mm		1 in
Essentra Access Solutions 012528PW043			Phillips	Pan Head	Nylon	0.198 "	5.03 mm	12.26 mm	0.483 in	1/4"-28	Machine Screw							0.438 in	11.11 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1/4"-28 Pan Head Machine Screw Phillips Drive Nylon
