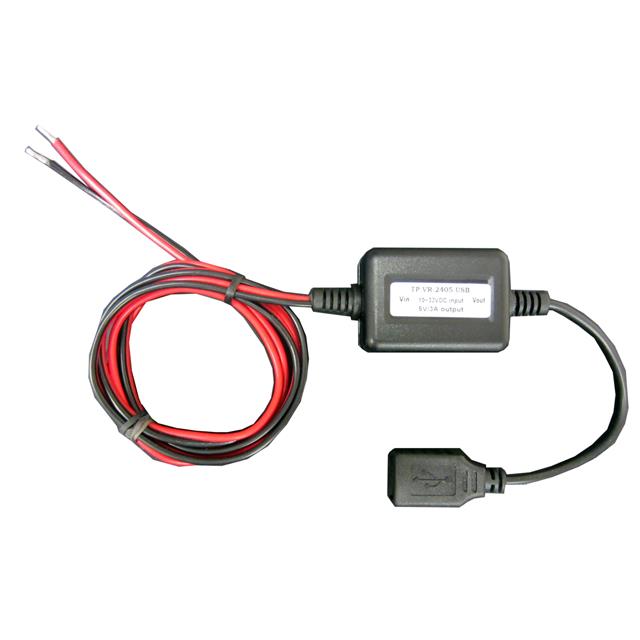

TP-VR-2405-USB

Active

Tycon Systems Inc.

BATT CHRGR USB IN-VEHICLE 5V 1A

Search across all available documentation for this part.

Active

Tycon Systems Inc.

BATT CHRGR USB IN-VEHICLE 5V 1A

Technical Specifications

Parameters and characteristics for this part

Part	Power (Watts)	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Isolation	Current - Output (Max) [Max]	Type	Voltage - Output 1	Applications	Number of Outputs	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Mounting Type	Power - Max [Max]	Charge Current - Max [Max]	Voltage - Input [Max]	Voltage - Input [Min]	Termination Style	Battery Cell Size	Voltage - Nominal	Number of Cells
Tycon Systems Inc. TP-VRHP-4824	70 W	38.1 mm	133.1 mm	5.24 "	1.5 "	3 "	76.2 mm	1.5 kV	2.9 A	Enclosed	24 V	ITE (Commercial)	1	85 %	65 °C	-30 ░C	36 V	72 V	Chassis Mount
Tycon Systems Inc. TP-VRHP-4856	70 W	38.1 mm	133.1 mm	5.24 "	1.5 "	3 "	76.2 mm	1.5 kV	1.25 A	Enclosed	56 V	ITE (Commercial)	1	85 %	65 °C	-30 ░C	36 V	72 V	Chassis Mount DIN Rail
Tycon Systems Inc. TP-VR-2405-USB		25.4 mm	69.85 mm	2.75 in	1 "	1.25 in	31.75 mm			USB In-Vehicle					65 °C	-40 °C			Custom	5 W	1 A	32 V	10 V	USB A Receptacle	5 V	5 V	1
Tycon Systems Inc. TP-VRHP-4856-250	250 W	43.2 mm	188 mm	7.4 "	1.7 in	5.9 "	149.9 mm	1.5 kV	4.46 A	Enclosed	56 V	ITE (Commercial)	1	85 %	65 °C	-30 ░C	36 V	72 V	Chassis Mount
Tycon Systems Inc. TP-VR-2405	15 W								3 A	Enclosed	5 V	ITE (Commercial)	1	80 %	65 °C	-40 °C	10 VDC	32 V	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB In-Vehicle Battery Charger 5V 1A 5V
