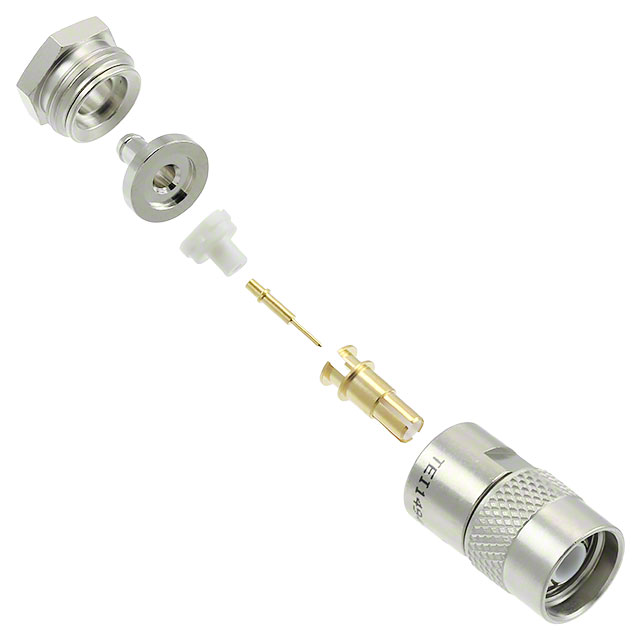

PL3155-47

Active

Cinch Connectivity Solutions Trompeter

CONN TTM PLUG STR SOLDER

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Trompeter

CONN TTM PLUG STR SOLDER

Technical Specifications

Parameters and characteristics for this part

Part	Voltage Rating	Body Material	Shield Termination	Frequency - Max [Max]	Impedance	Center Contact Material	Connector Style	Housing Color	Includes	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Number of Ports	Body Finish	Cable Group	Center Contact Plating	Contact Termination	Mating Cycles
Cinch Connectivity Solutions Trompeter PL3155ACS-201	400 V	Brass	Crimp	500 MHz	Non-Constant	Beryllium Copper	TTM Twinaxial/Triaxial	Silver	1 Heat Shrink 2 pcs - 1 Connector	Plug Male Pin (Concentric)	-65 ░C	200 °C	Free Hanging (In-Line)	1	Nickel	M17/176-00002	Gold	Crimp	500
Cinch Connectivity Solutions Trompeter PL3155-47	400 V	Brass	Wrench Clamp	500 MHz	Non-Constant	Beryllium Copper	TTM Twinaxial/Triaxial	Silver		Plug Male Pin (Concentric)	-65 ░C	200 °C	Free Hanging (In-Line)	1	Nickel	M17/176-00002	Gold	Solder	500
Cinch Connectivity Solutions Trompeter PL3155AC-201	400 V	Brass	Crimp	500 MHz	Non-Constant	Beryllium Copper	TTM Twinaxial/Triaxial	Silver	1 Heat Shrink 2 pcs - 1 Connector	Plug Male Pin (Concentric)	-65 ░C	200 °C	Free Hanging (In-Line)	1	Nickel	M17/176-00002	Gold	Crimp	500

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TTM, Twinaxial/Triaxial Connector Plug, Male Pin (Concentric) Non-Constant Free Hanging (In-Line) Solder
