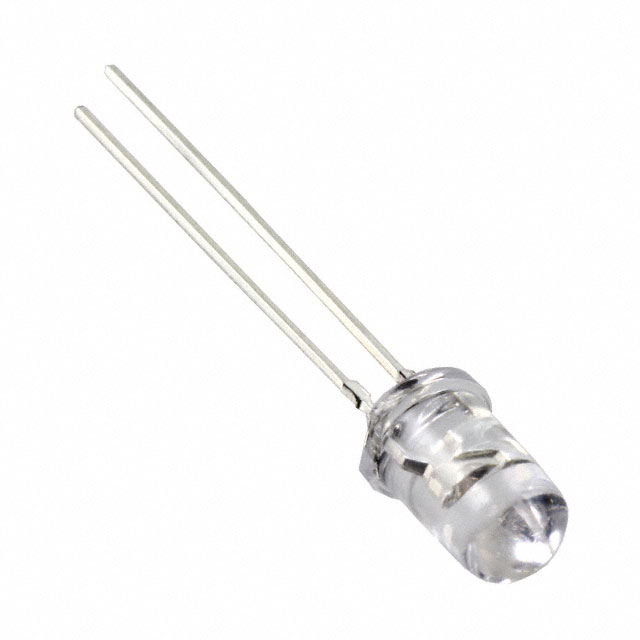

VAOL-5GUV8T4

Active

Visual Communications Company - VCC

EMITTER UV 385NM 30MA RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

VAOL-5GUV8T4

Active

Visual Communications Company - VCC

EMITTER UV 385NM 30MA RADIAL

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VAOL-5GUV8T4

Current - DC Forward (If) (Max) [Max]	30 mA
Mounting Type	Through Hole
Operating Temperature [Max]	80 °C
Operating Temperature [Min]	-20 °C
Orientation	Top View
Package / Case	Radial
Type	Ultraviolet (UV)
Viewing Angle	30 °
Voltage - Forward (Vf) (Typ)	3 V
Wavelength	385 nm

VAOL-5 Series

Part	Wavelength - Dominant	Mounting Type	Color	Height (Max) [Max]	Configuration	Current - Test	Lens Style	Lens Size [diameter]	Voltage - Forward (Vf) (Typ)	Millicandela Rating	Viewing Angle	Lens Color	Package / Case	Lens Transparency	Orientation	Current - DC Forward (If) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Wavelength	Height (Max) [Max] [z]
Visual Communications Company - VCC VAOL-5LSBY4	470 nm	Through Hole	Blue	7.85 mm	Standard	20 mA	Round with Domed Top	5.1 mm	3.5 V	1500 mcd	60 °	Colorless	Radial	Clear
Visual Communications Company - VCC VAOL-5GUV0T4		Through Hole							3 V		60 °		Radial		Top View	30 mA	80 °C	-20 °C	Ultraviolet (UV)	405 nm
Visual Communications Company - VCC VAOL-5MSBY2	470 nm	Through Hole	Blue		Standard	20 mA	Round with Domed Top	4.8 mm Dia	3.5 V	1500 mcd	60 °	Blue	Radial	Diffused							8.85 mm
Visual Communications Company - VCC VAOL-5GWY4		Through Hole	White		Standard	20 mA	Round with Domed Top	4.8 mm Dia	3.5 V	7000 mcd	30 °	Colorless	Radial	Clear							8.85 mm
Visual Communications Company - VCC VAOL-5GUV8T4		Through Hole							3 V		30 °		Radial		Top View	30 mA	80 °C	-20 °C	Ultraviolet (UV)	385 nm
Visual Communications Company - VCC VAOL-5LDE2	570 nm	Through Hole	Green		Standard	20 mA	Round with Domed Top	4.8 mm Dia	2.2 V	50 mcd	60 °	Green	Radial	Diffused							8.85 mm
Visual Communications Company - VCC VAOL-5LSBY2	470 nm	Through Hole	Blue		Standard	20 mA	Round with Domed Top	4.8 mm Dia	3.5 V	1500 mcd	60 °	Blue	Radial	Diffused							8.85 mm
Visual Communications Company - VCC VAOL-5LAE2	640 nm	Through Hole	Red		Standard	20 mA	Round with Domed Top	4.8 mm Dia	2.2 V	80 mcd	60 °	Red	Radial	Diffused							8.85 mm
Visual Communications Company - VCC VAOL-5LCE2	590 nm	Through Hole	Yellow		Standard	20 mA	Round with Domed Top	4.8 mm Dia	2 V	80 mcd	60 °	Yellow	Radial	Diffused							8.85 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.76
		10	$ 1.11
		100	$ 0.82
		500	$ 0.76
		1000	$ 0.62
		2000	$ 0.59
		5000	$ 0.58
		10000	$ 0.56

Description

General part information

VAOL-5 Series

Ultraviolet (UV) Emitter 385nm 3V 30mA 30° Radial

Documents

Technical documentation and resources

No documents available
